Howard Miller 354472 Clock Movement 2 Chime 1/2" 15 mm Shaft Quartz Battery Clock Movement
This model is for use with mantel and desk clocks without a pendulum
Howard Miller part number 354471.

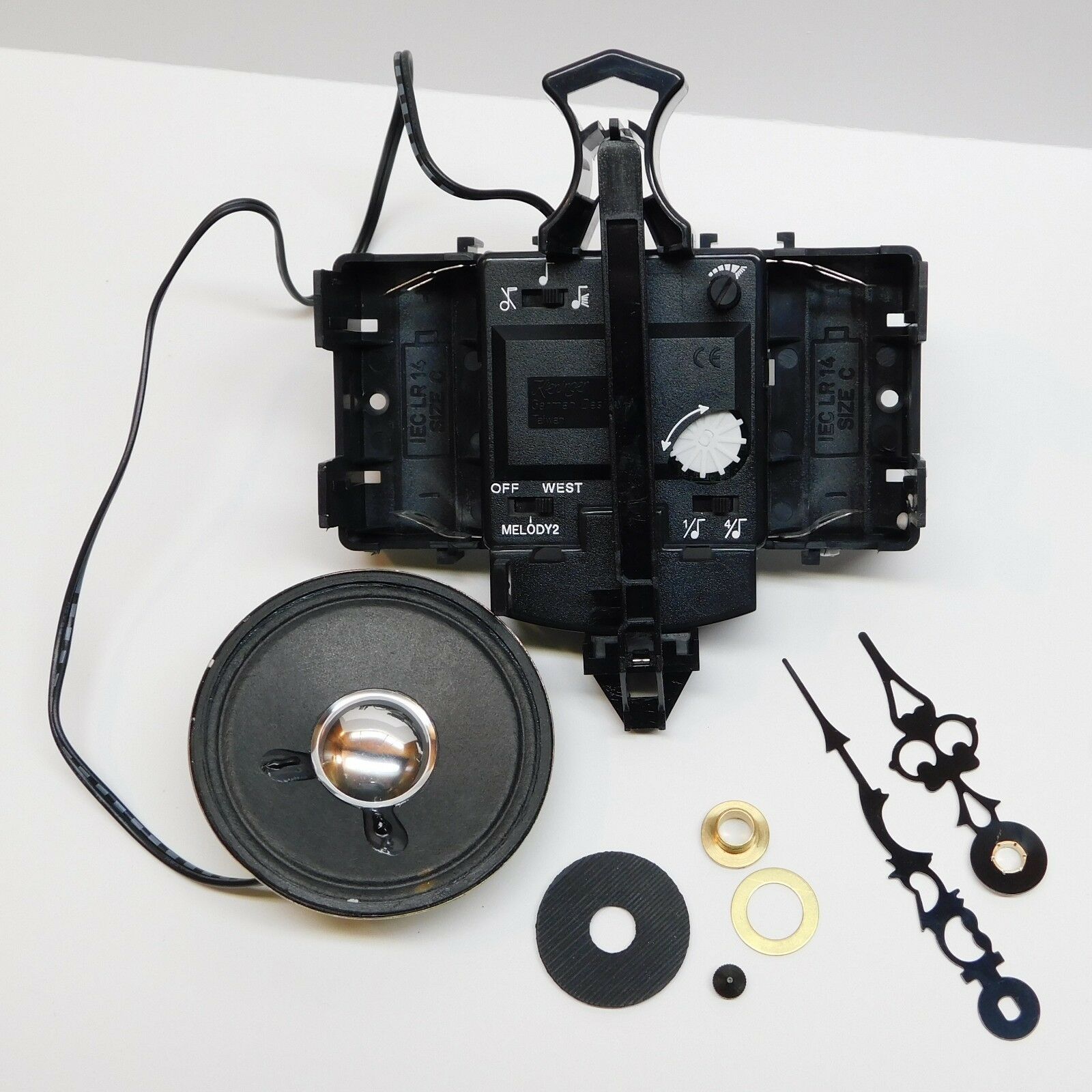

Kieninger / Howard Miller dual chime quartz wall clock movement. Howard Miller factory model number 354472. This is a direct replacement for the Hermle 2214 and 2215 models which are no longer in production. Choice of Westminster or Ave Maria chimes. Plays ascending chiming melody on each 1/4 hour, then plays the full melody at the top of the hour, then strikes the hour after playing the full melody. Can also be set to play just the full Westminster melody plus the hour strike at the top of the hour, without playing the ascending melody on the 1/4 hours. Can be set to play 24 hours a day or set to shut off at night for 8 hours. Volume control. A very versatile quartz clock unit with great sounding chimes. Speaker is 2 9/16" (65 mm). Comes with mounting nut and washer, rubber spacer washer, minute hand nut, and installation instructions.
Runs on 2 "C" cell batteries, not included. Alkaline type recommended.
This is the 15mm shaft length version, or about 1/2" overall shaft length for dials up to 1/4" thick. Please measure the length of the hand shaft on your existing clock movement from the front of the movement to the tip to determine what shaft length you need. If you aren't sure, please ask!
The hands shown in the photograph are serpentine-style and have a minute hand that is 3" long from the center hole to the tip. This style hand is available in the following lengths: 1 7/8", 2 3/8", 3", 4 1/4", and 4 3/4". Spade-style hands are shown in photo #2 and are available in the following lengths: 2", 2 1/2", 3 1/2", 4 1/2", and 5 1/2". Hand length is determined by measuring from the center hole of the minute hand out to the tip. If you are replacing an existing Hermle clock movement, the hands from your old movement will fit this new movement. One set of hands per order.
