Takane Quartz Clock Movement – Spade Hands – Battery Powered

This Takane quartz clock movement is a high-quality, USA-made battery-powered movement designed for reliability and long service life. It comes complete with spade-style clock hands, mounting hardware, and multiple shaft length options to fit a wide range of dial thicknesses.

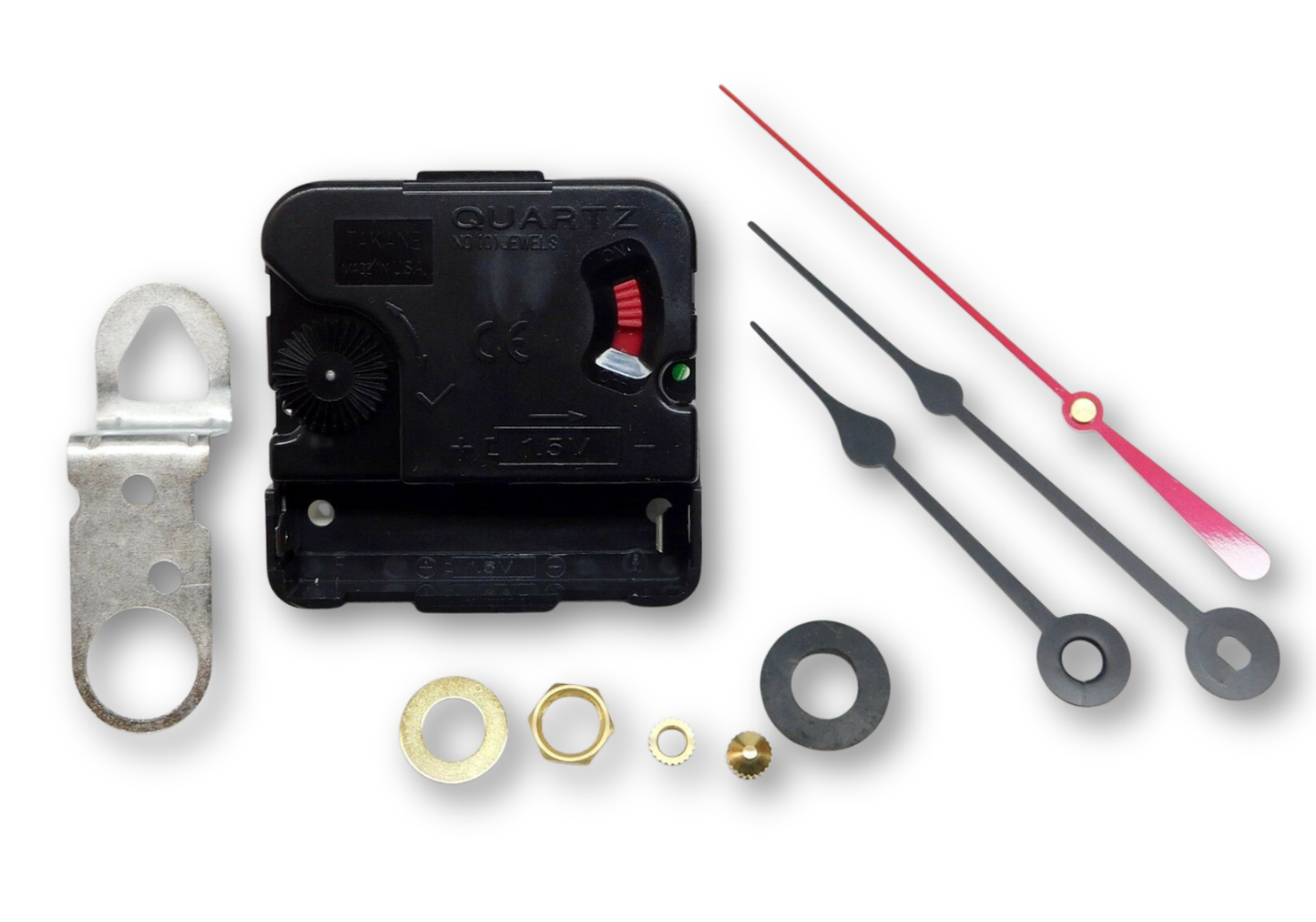

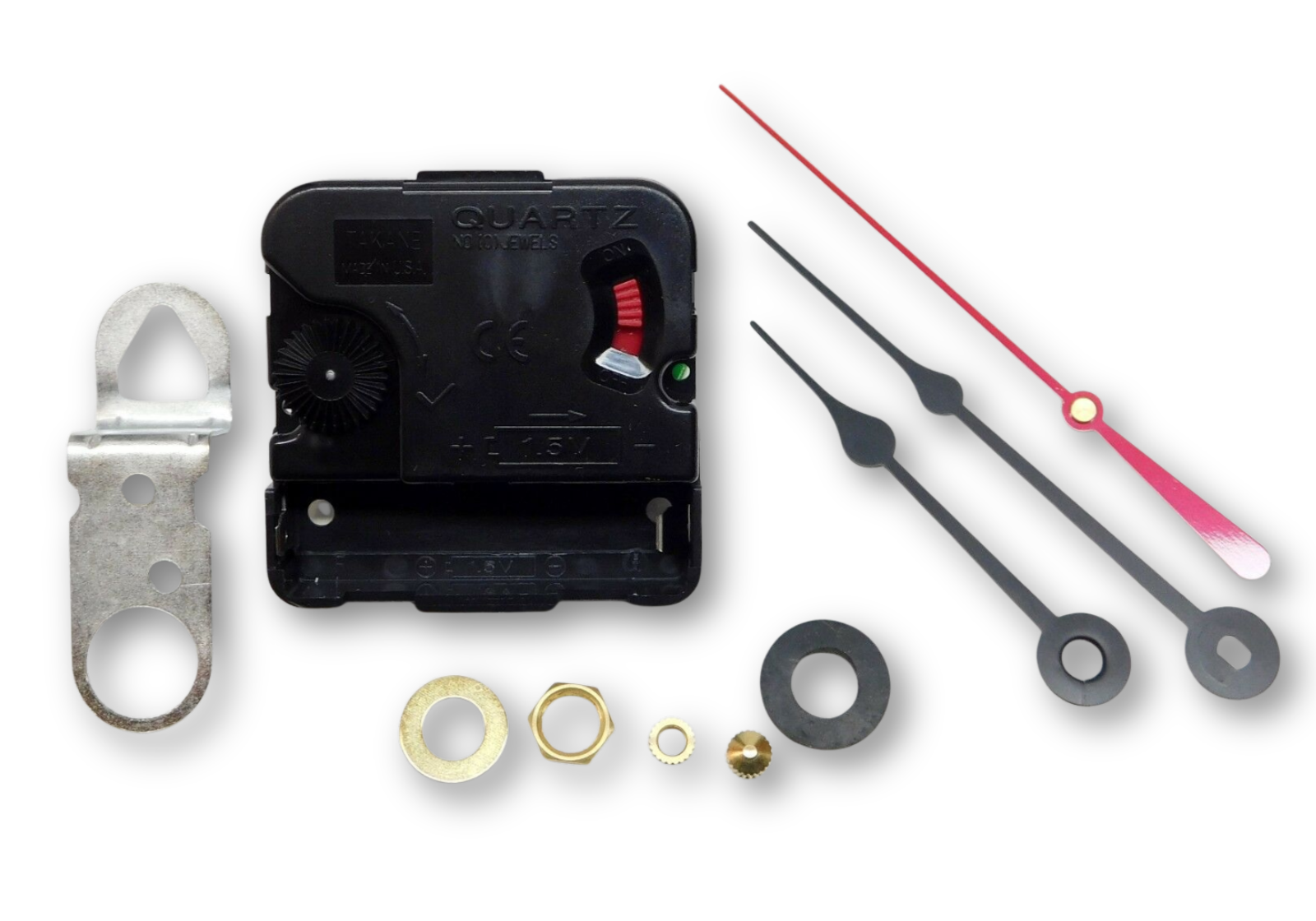

The movement runs on a single AA battery and is ideal for clock repairs, replacements, or new clock projects. Hands are black on one side and white on the reverse, with a red second hand included. Includes mounting nut and washer, open and closed hand nuts, rubber washer, spade-style hand set.

Specifications

Shaft Length Options

Select based on dial thickness:

-1/8" dial → 17/32" shaft

-1/4" dial → 11/16" shaft

-3/8" dial → 3/4" shaft

-1/2" dial → 7/8" shaft

-5/8" dial → 1" shaft

-3/4" dial → 1 3/16" shaft

Movement Details

-Brand: Takane

-Type: Quartz clock movement

-Power: 1 × AA battery (not included; alkaline recommended)

-Case Size: 2 1/8" × 2 1/8" × 5/8"

-Shaft Diameter: 5/16"

Included Hands

-Style: Spade

-Color: Black (white reverse side)

-Second Hand: Red

Available Minute Hand Lengths:

-1 7/8", 2", 2 1/2", 3 1/2", 4 1/2", 5 1/2"

(Hand length is measured from the center mounting hole to the tip of the minute hand.)
