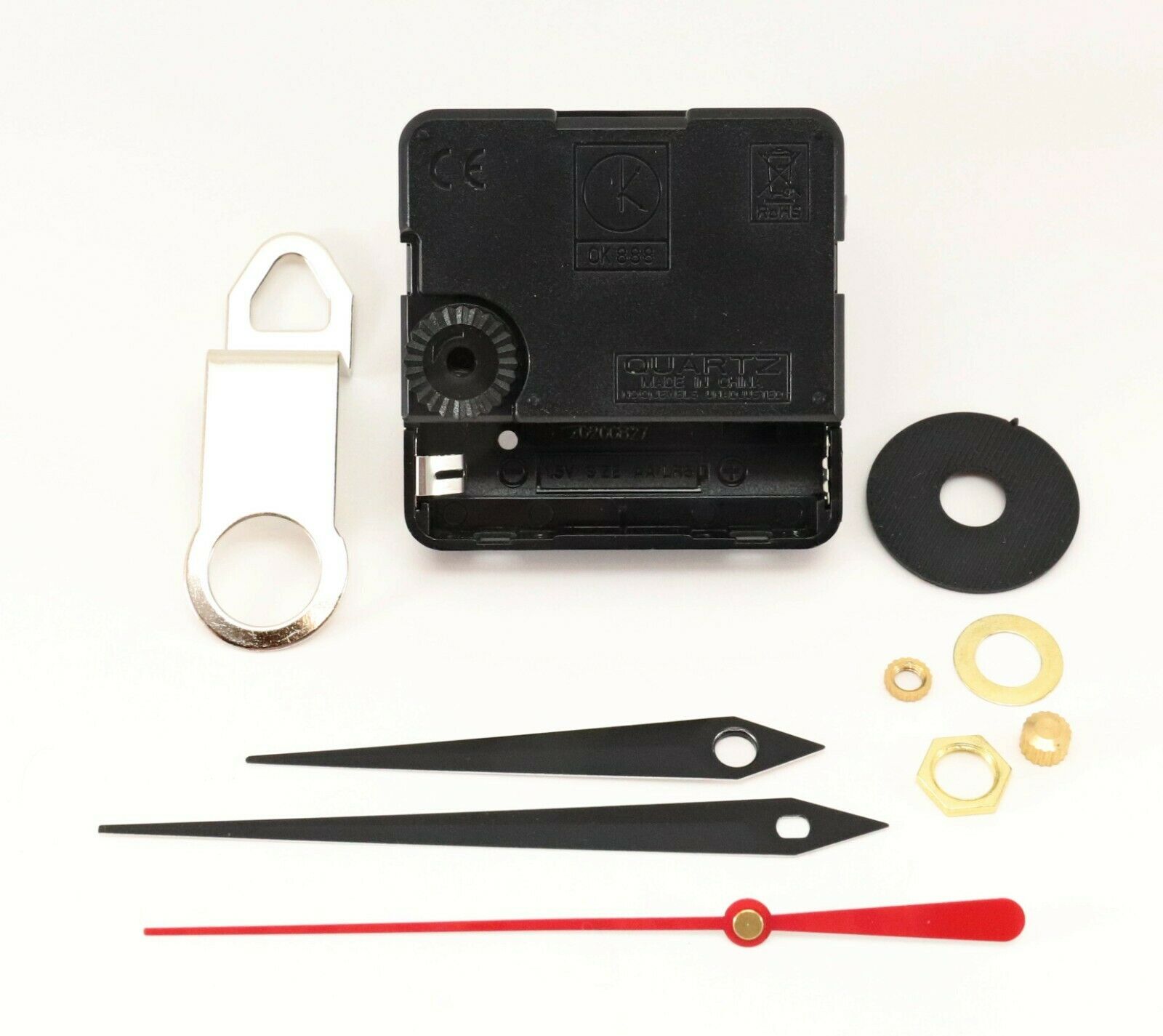

Mini Quartz Silent Clock Movement – Sword Hands - High-Torque Silent Sweep

This mini quartz silent sweep clock movement is a high-power, precision movement designed for smooth, quiet operation with no ticking noise. Built to our specifications for long-term reliability, it delivers excellent torque and can drive full-size clock hands with ease.

The movement includes all required mounting hardware and a removable metal hanger, allowing it to be installed with or without the hanger depending on your project needs. Ideal for custom clock builds, repairs, or upgrades where silent operation is essential.

This movement is an excellent choice for silent wall clocks, mantel clocks, and precision repair projects requiring dependable quartz performance.

Key Features

-Uses AA battery (alkaline recommended, not included)

-Includes sword-style hands and mounting hardware

-2-year warranty

Dial Thickness Compatibility

Select the correct shaft length for your dial:

-1/8", 1/4", 3/8", 1/2", or 5/8"

Movement Case Size

-2 3/16" x 2 3/16" x 5/8" (not including shaft)

Shaft Length Options

Short Shaft

-Total length: 11/16"

-Threaded portion: 1/4"

-Thread diameter: 5/16"

Medium Shaft

-Total length: 7/8"

-Threaded portion: 7/16"

-Thread diameter: 5/16"

Long Shaft

-Total length: 1 3/16"

-Threaded portion: 3/4"

-Thread diameter: 5/16"

Hands Included

-Sword-style hands, 3 1/2" minute hand length (black with white reverse)

-Red or black second hand included

-Hand length measured from center hole to tip of minute hand

-One complete set of hands per order
