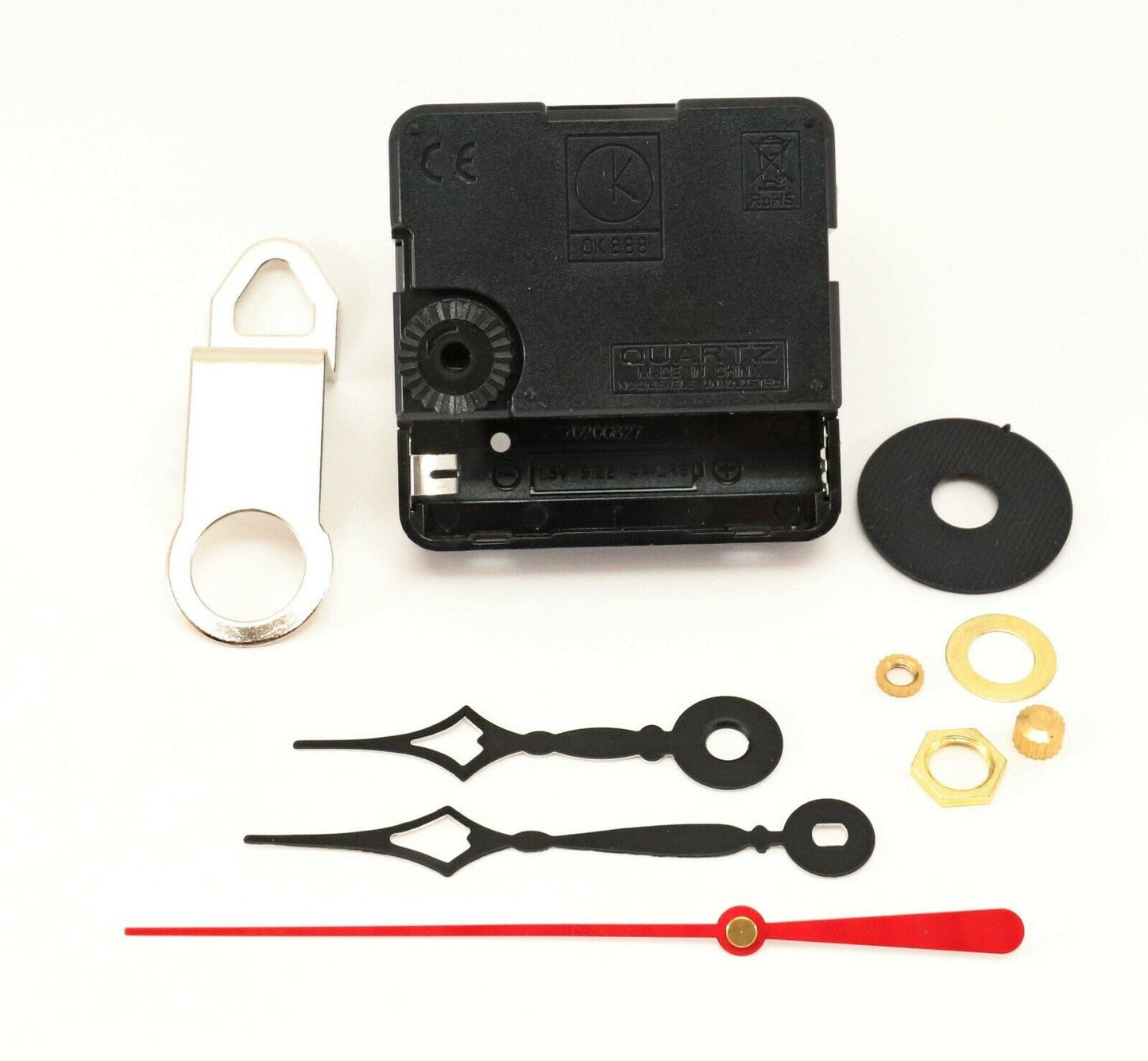

Mini Quartz Silent Clock Movement - Eli Terry Hands

Mini Quartz Silent Clock Movement - Eli Terry Hands

Regular price $5.50 USD
Regular price Sale price $5.50 USD
Sale Sold out
Dial Thickness
Hand Length
Second Hand Color
High-quality high-power quartz clock movement with silent sweep - no ticking noise. Made to our specifications for strong performance and long life. This movement is capable of running all-sized hands. Comes with all mounting hardware and metal hanger - movement can be used with or without the metal hanger.

This kit is for use with dial thicknesses of 1/8", 1/4", 3/8", 1/2", 5/8" (select above).

Movement case measures 2 3/16" x 2 3/16" x 5/8" thick (not counting the shaft).

Shaft length information:

Short shaft:

-Total shaft length - 11/16"
-Threaded portion - 1/4"
-Diameter of threads - 5/16"

Medium shaft:

-Total shaft length - 7/8"
-Threaded portion - 7/16"
-Diameter of threads - 5/16"

Long shaft:

-Total shaft length - 1 3/16"
-Threaded portion - 3/4"
-Diameter of threads - 5/16"

This kit comes with black color, (white on reverse side) Eli Terry-style hands as shown. This style hands come in the following sizes:  2 3/4" and 3 1/4". Second hand comes in red, black, or brass color.

Hand size is determined by measuring the minute hand from the center hole to the tip.

1 set of hands per order.

2-year warranty

AA size battery required - alkaline recommended - battery is not included with purchase.
