Krieger Clock Parts
Mini Quartz Silent Clock Movement - Serpentine Hands
Mini Quartz Silent Clock Movement - Serpentine Hands
Regular price
$5.50 USD
Regular price
Sale price
$5.50 USD
Unit price
/
per
Couldn't load pickup availability

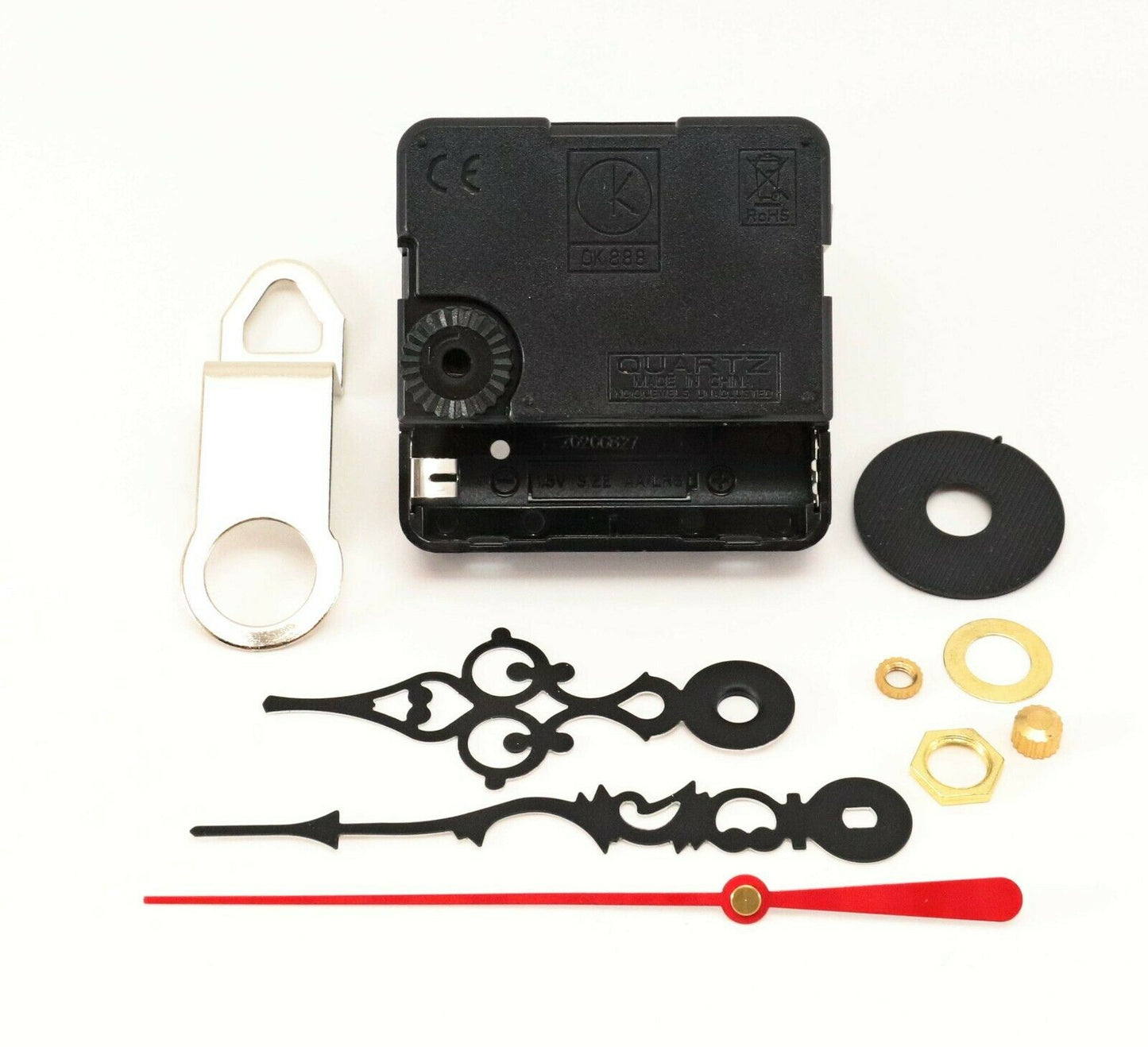

This replacement, high-power quartz clock movement runs with a silent sweep second hand (there is no ticking noise). The high-torque produced by this movement makes it capable of running all sizes of hands, including very large hands on jumbo clocks. This movement is made to our demanding specifications for strong performance and long life and will provide years of service. All mounting hardware is included, so the movement is ready to go out of the box. An optional metal hanger is also included for hanging the clock on the wall.
This movement kit can work with a variety of dial thicknesses, including 1/8", 1/4", 3/8", 1/2", 5/8". Please select the correct thickness for your clock's dial.
Serpentine hands are also included with this kit and are available in the following sizes: 1 7/8", 2 3/8", 3", 4 1/4", and 4 3/4". Serpentine hands are black on the front and white on the reverse. Hand size is determined by measuring the minute hand from the center hole to the tip. Second hand is available in red, black, or brass color.
Specificatoins:
-Movement Case: 2 3/16" H x 2 3/16" W x 5/8" D (not counting the shaft).
-Battery: AA (Not included)
-Compatible Dial Thicknesses: 1/8", 1/4", 3/8", 1/2", 5/8"
-Serpentine Hand Sizes: 1 7/8", 2 3/8", 3", 4 1/4", and 4 3/4"
-Second Hand Colors: Red, Black, Brass
-2 Year Warranty
Shaft length information:
Short shaft:
-Total shaft length - 11/16"
-Threaded portion - 1/4"
-Diameter of threads - 5/16"
Medium shaft:
-Total shaft length - 7/8"
-Threaded portion - 7/16"
-Diameter of threads - 5/16"
Long shaft:
-Total shaft length - 1 3/16"
-Threaded portion - 3/4"
-Diameter of threads - 5/16"
