Krieger Clock Parts
Mini Quartz Silent Clock Movement - Spade Hands
Mini Quartz Silent Clock Movement - Spade Hands
Regular price
$5.50 USD
Regular price
Sale price
$5.50 USD
Unit price
/
per
Couldn't load pickup availability
This high-power quartz clock movement features a silent sweep, so there's no ticking noise. It's made to our specifications for strong performance and long life. This movement is capable of running all-sized hands, including spade hands. It comes with all mounting hardware and metal hanger, so you can use it with or without the hanger.
This kit is for use with dial thicknesses of 1/8", 1/4", 3/8", 1/2", 5/8" (select above).
Movement case measures 2 3/16" x 2 3/16" x 5/8" thick (not counting the shaft).
Shaft length information:
Short shaft:
-Total shaft length - 11/16"
-Threaded portion - 1/4"
-Diameter of threads - 5/16"
Medium shaft:
-Total shaft length - 7/8"
-Threaded portion - 7/16"
-Diameter of threads - 5/16"
Long shaft:
-Total shaft length - 1 3/16"
-Threaded portion - 3/4"
-Diameter of threads - 5/16"

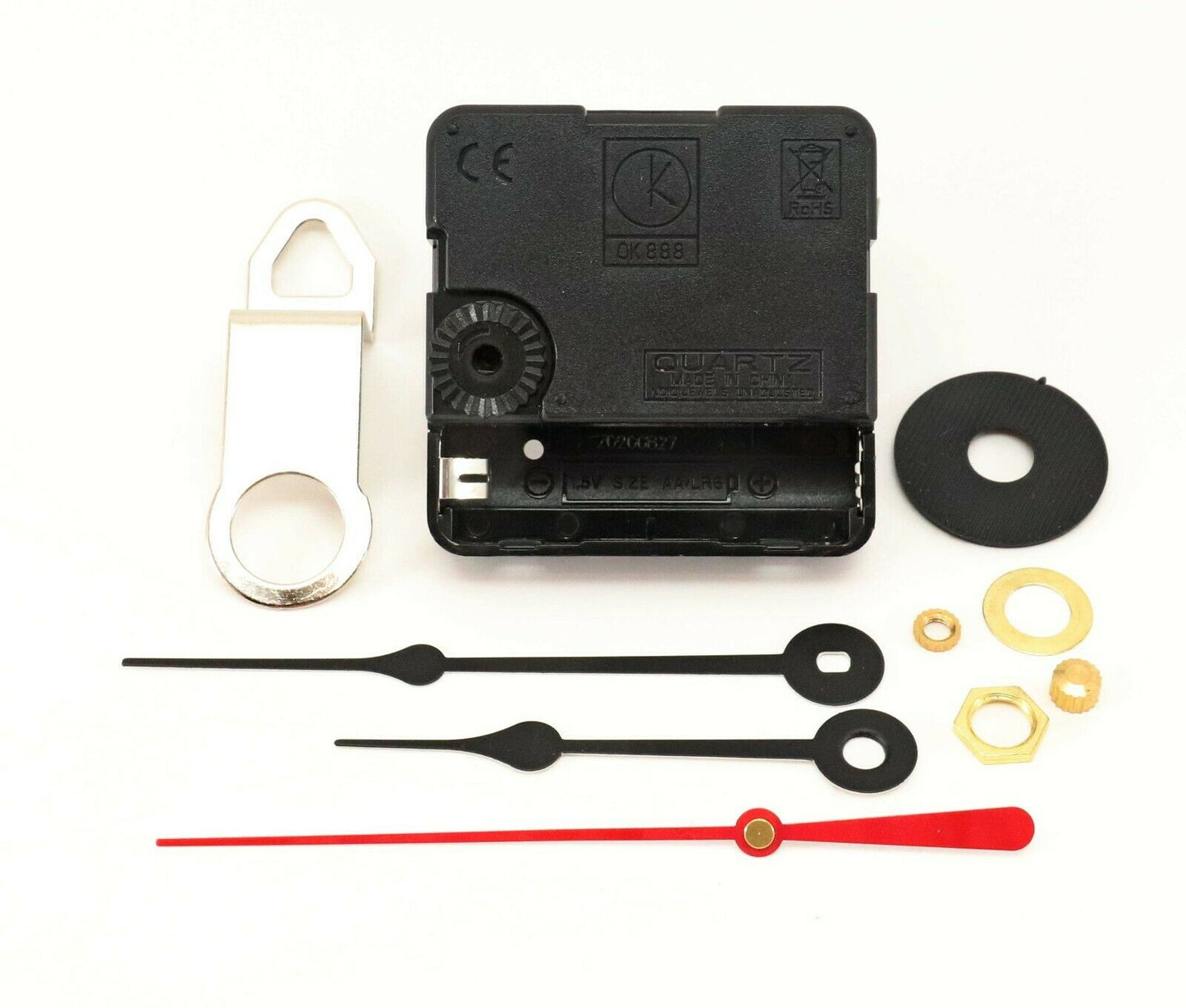

This kit comes with black color, (white on reverse side) spade-style hands as shown. 3 1/2" size is the default size - spade hands come in the following sizes: 1 3/4", 2", 2 1/2", 3 1/2" (shown in the photo), 4 1/2", and 5 1/2". Red second hand is automatically supplied but we also have black and brass color upon request.
Hand size is determined by measuring the minute hand from the center hole to the tip. If you need a different size from the default 3 1/2" size, please let us know by emailing us at sales@kriegerclockparts.com.
1 set of hands per order.
2-year warranty
