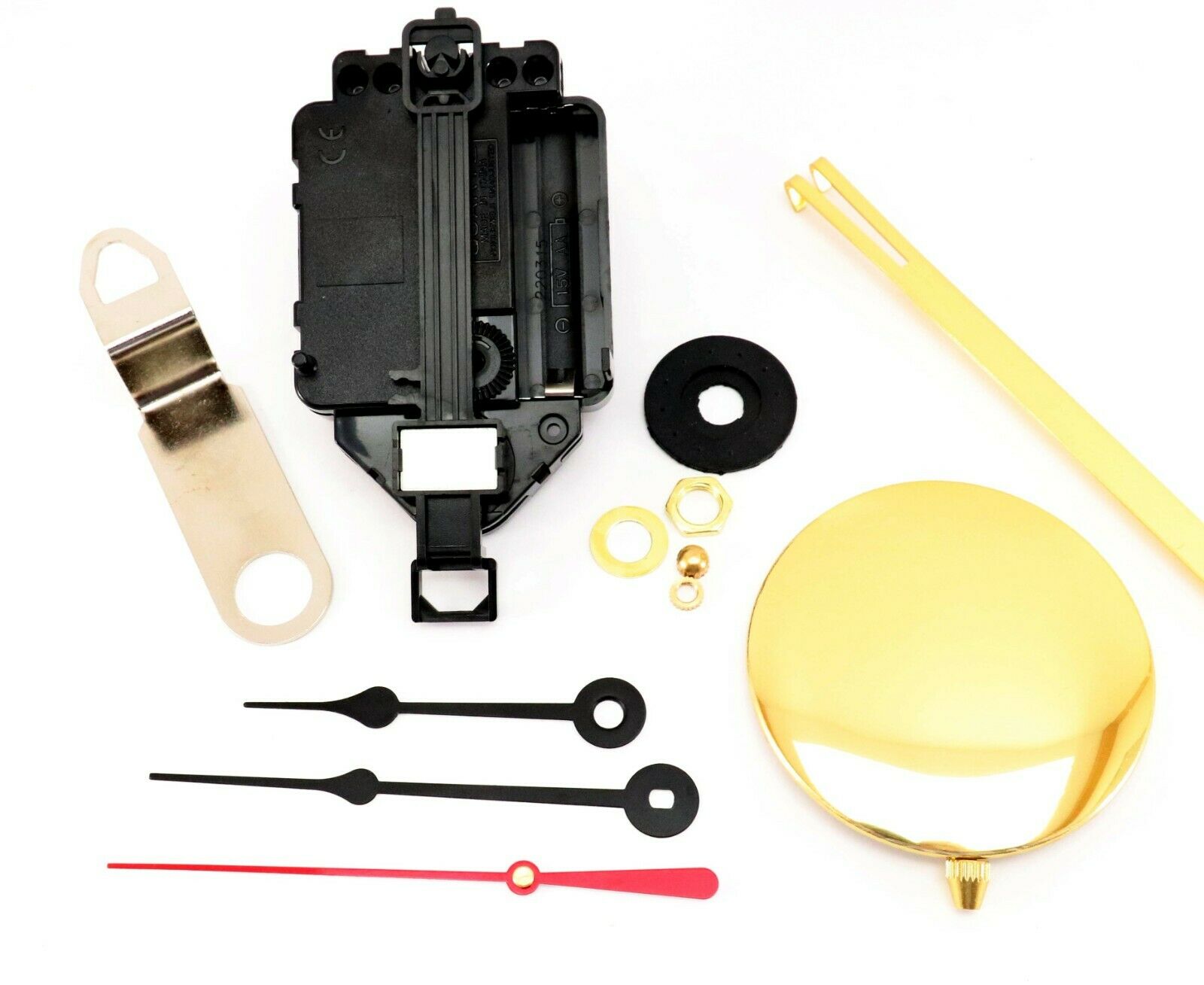

Pendulum Clock Movement – Quartz Silent Sweep with Pendulum – Spade Hands

This silent sweep quartz pendulum clock movement is a high-quality, high-torque movement designed for quiet operation with no ticking noise. It features continuous sweep motion and is ideal for home, office, or bedroom clocks where silence is important.

The movement uses I-shaft hands (oval-shaped hole in the minute hand) and runs on a single AA battery (alkaline recommended). A 17-inch pendulum assembly is included, featuring a brass-finish pendulum rod and a 2 5/8" diameter pendulum bob. The pendulum rod can be shortened in 1-inch increments down to 4 inches to accommodate different clock case sizes.

This is a high-power quartz movement capable of driving clock hands up to 15 inches in length, making it suitable for both small and large dial clocks. A heavy-duty metal hanger, mounting hardware, and a set of spade-style hands are included.

Specifications

-Movement Type: Quartz pendulum clock movement

-Sweep Type: Silent sweep (no ticking)

-Battery: 1 × AA (alkaline recommended, not included)

-Hand Shaft Type: I-shaft (oval minute hand hole)

-Torque: High torque / high power

-Maximum Hand Length: Up to 15"

-Dial Thickness Capacity: Up to 1/2"

-Shaft Diameter: 5/16"

-Overall Shaft Length: 7/8"

-Movement Size: Approx. 3 7/16" L × 2 3/16" W × 7/8" D

Included Hands

-Style: Spade

-Color: Black (red second hand included)

-Available Minute Hand Lengths:

-1 3/4"

-2"

-2 1/2"

-3 1/2"

-4 1/2"

-5 1/2"

(Hand length is measured from the center mounting hole to the tip of the minute hand. One set of hands included.)

Pendulum

-Included Pendulum Length: Up to 17"

-Adjustable Length: Breakaway rod in 1" sections down to 4"

-Pendulum Bob Diameter: 2 5/8"

-Finish: Brass-finish rod and bob

-Maximum Pendulum Weight: Approx. 3 oz
