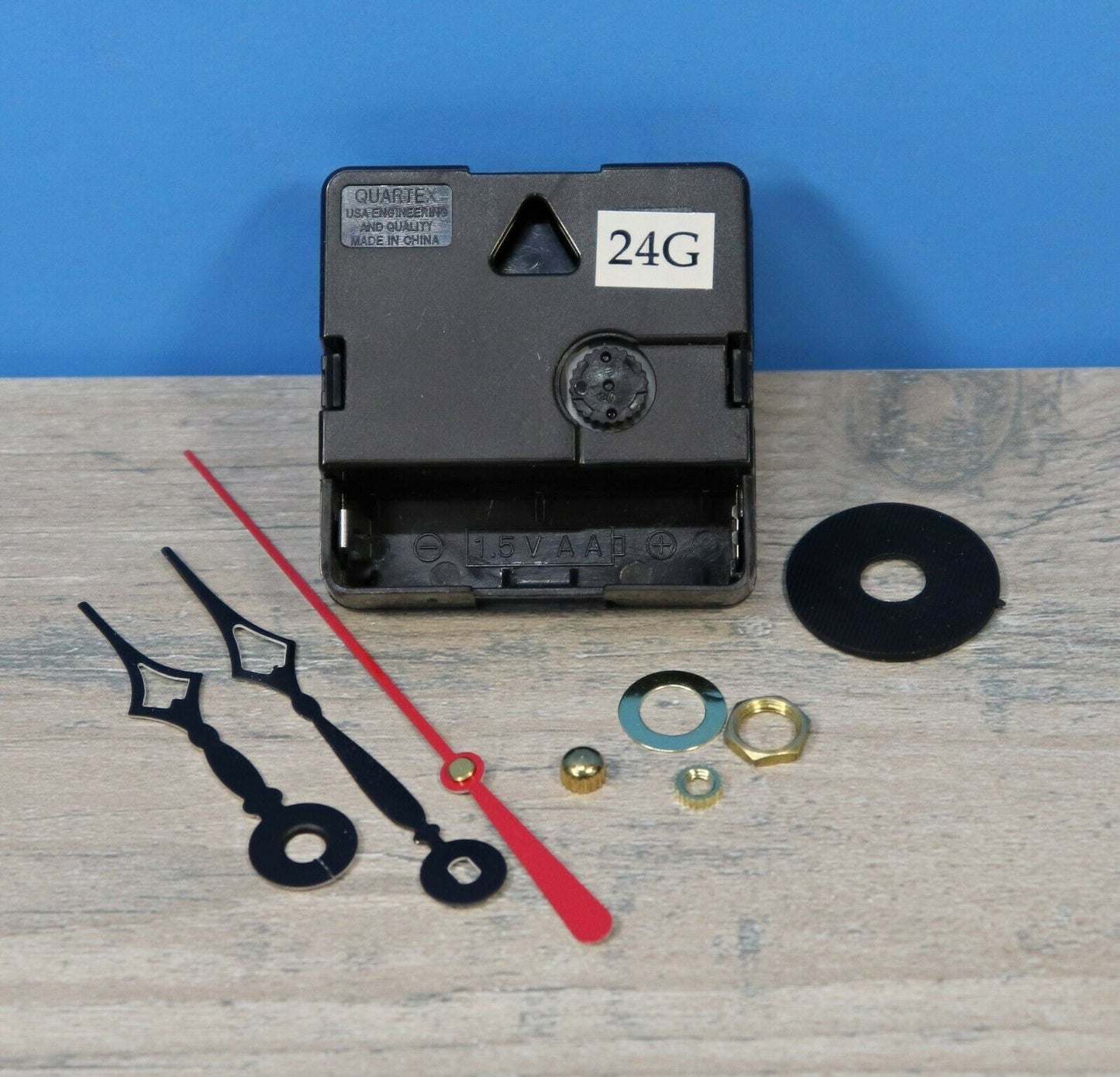

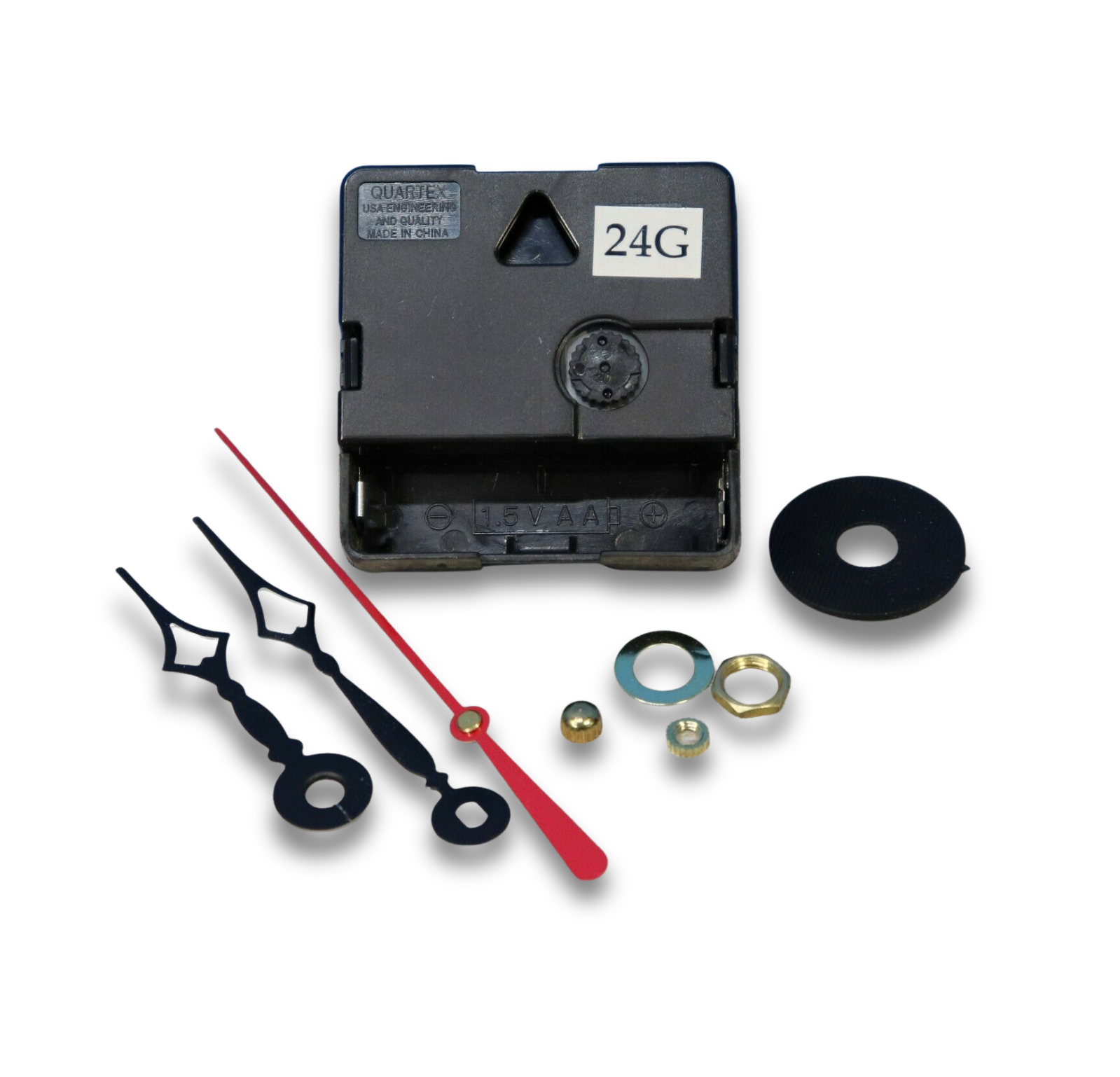

Quartex 24-Hour Quartz Clock Movement – Fits 1/4" Dial, Eli Terry Hands

This Quartex 24-hour quartz clock movement is designed for 24-hour (military time) clock dials, with the hour hand making one full rotation every 24 hours. It is a high-quality, battery-powered movement built for accuracy and reliability, making it ideal for specialty clocks, industrial displays, or custom projects.

The movement is powered by a single AA battery (alkaline recommended) and is sized for dials up to 1/4" thick. It includes all necessary mounting hardware for installation.

The movement comes fitted with classic 2 3/4" Eli Terry–style hands, black on one side and white on the reverse, offering flexibility depending on dial color. The second hand is available in red, black, or gold.

Specifications & Features:

• Clock Type: 24-hour (military time) quartz movement

• Brand: Quartex

• Power: AA battery (not included)

• Dial Thickness: Up to 1/4"

• Overall Shaft Length: 11/16"

• Threaded Shaft Length: 5/16"

• Shaft Diameter: 5/16"

• Movement Size: 2 7/32" × 2 7/32" × 5/8" (housing only)

• Maximum Hand Length: 5 1/2" (minute hand)

• Warranty: 2-year manufacturer warranty

Hand Details:

• Style: Eli Terry

• Finish: Black on one side / white on reverse

• Minute Hand Length: 2 3/4" (center to tip)

• Second Hand Options: Red, black, or gold
