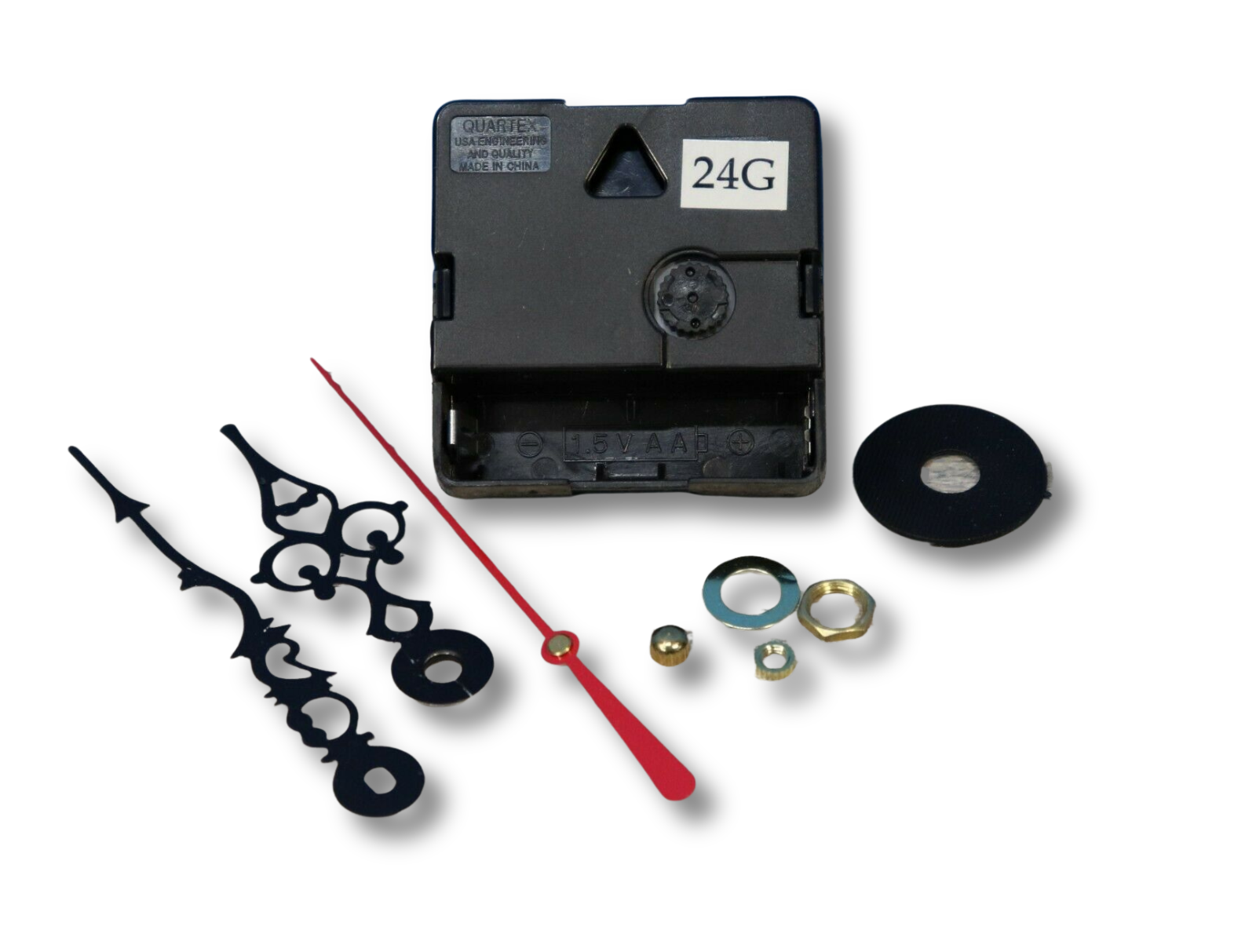

Quartex 24-Hour Quartz Clock Movement for 1/4" Dial – Serpentine Hands (Military Time)

The Quartex 24-Hour Quartz Clock Movement is designed specifically for 24-hour (military time) clock dials, where the hands make one full rotation every 24 hours instead of 12. This high-quality, battery-powered movement is ideal for specialty clocks, industrial displays, and custom clock projects.

Manufactured by Quartex, this reliable quartz movement operates on a single AA battery (not included) and includes mounting hardware for easy installation. The shaft length is correctly sized for dials up to 1/4" thick, making it a direct fit for many 24-hour clock applications.

Features & Specifications:

-Designed for 24-hour (military time) clock dials

-High-quality Quartex quartz movement

-Powered by 1 AA battery (not included)

-2-year manufacturer’s warranty

-Overall shaft length: 11/16"

-Threaded shaft length: 5/16"

-Shaft diameter: 5/16"

-Dial thickness compatibility: up to 1/4"

-Movement body size: 2 7/32" x 2 7/32" x 5/8" (housing only)

-Includes mounting hardware

Serpentine Hands Included:

-Black on one side, white on the other

-Available minute hand lengths: 1 3/8", 1 7/8", 2 3/8", 3 1/8", 4 1/4", 4 3/4"

-Maximum supported minute hand length: 5 1/2"

-Second hand available in red, black, or gold

Hand length is measured from the center hole of the minute hand to the tip.

This movement is a dependable solution for anyone building or repairing a 24-hour quartz clock that requires accurate, long-term performance.
