Rhythm Mechanical Bim-Bam Strike Pendulum Clock Movement

The movement measures (with chime rods) 7 1/16" high x 6 1/2" wide x 1 3/4" deep. Shaft diameter is 5/16". Total hand shaft length is 7/8" and can be used with a dial up to 1/2" thick.. 2 year warranty.  - please let me know if you need another size or style hand.  Will operate with a pendulum up to 16" in length.

A 16 inch length pendulum, lyre attachment, and 2 3/4" diameter pendulum bob are included with this kit. The pendulum can be broken off in 1" increments down to about 5" in length.

-

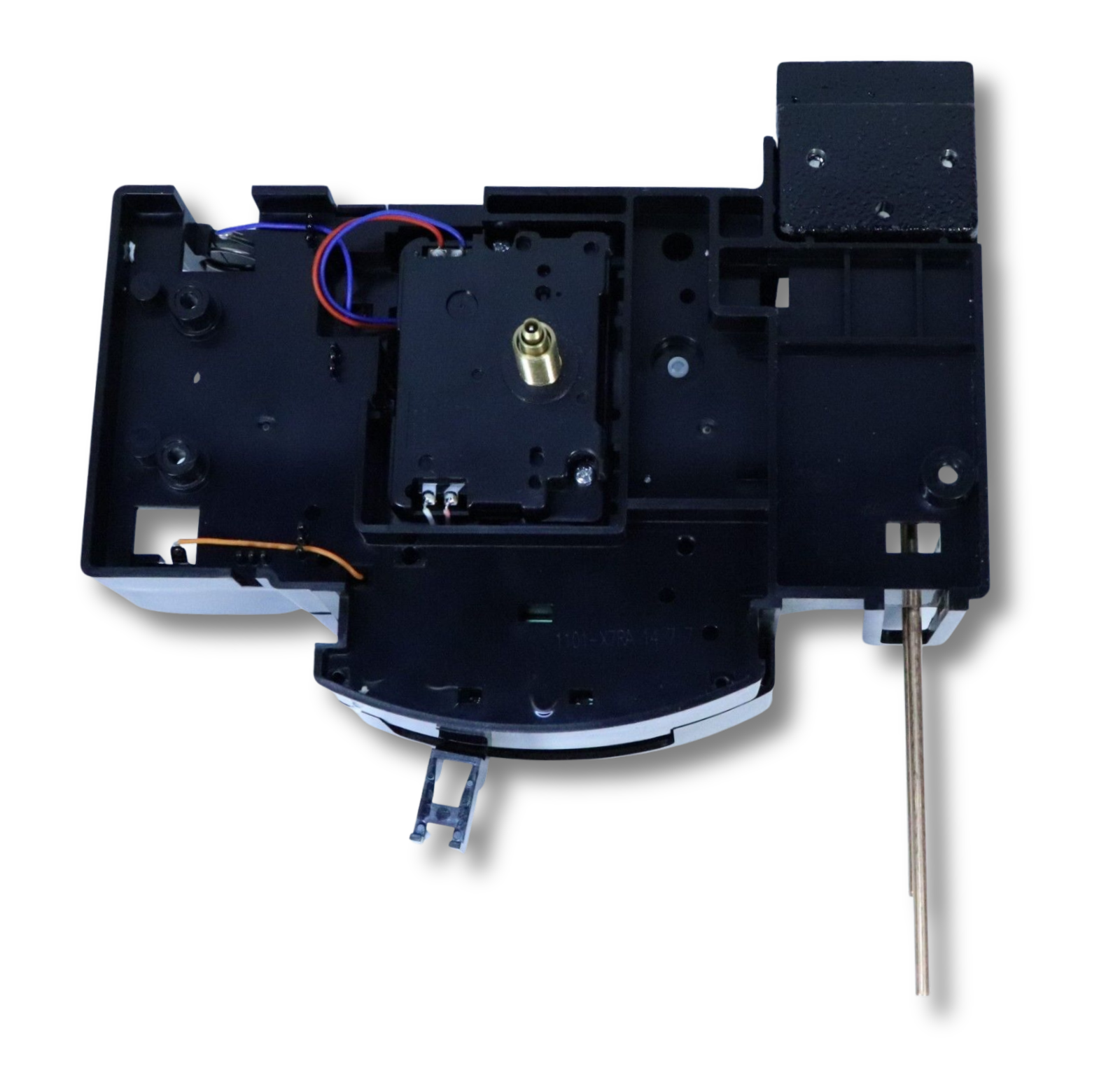

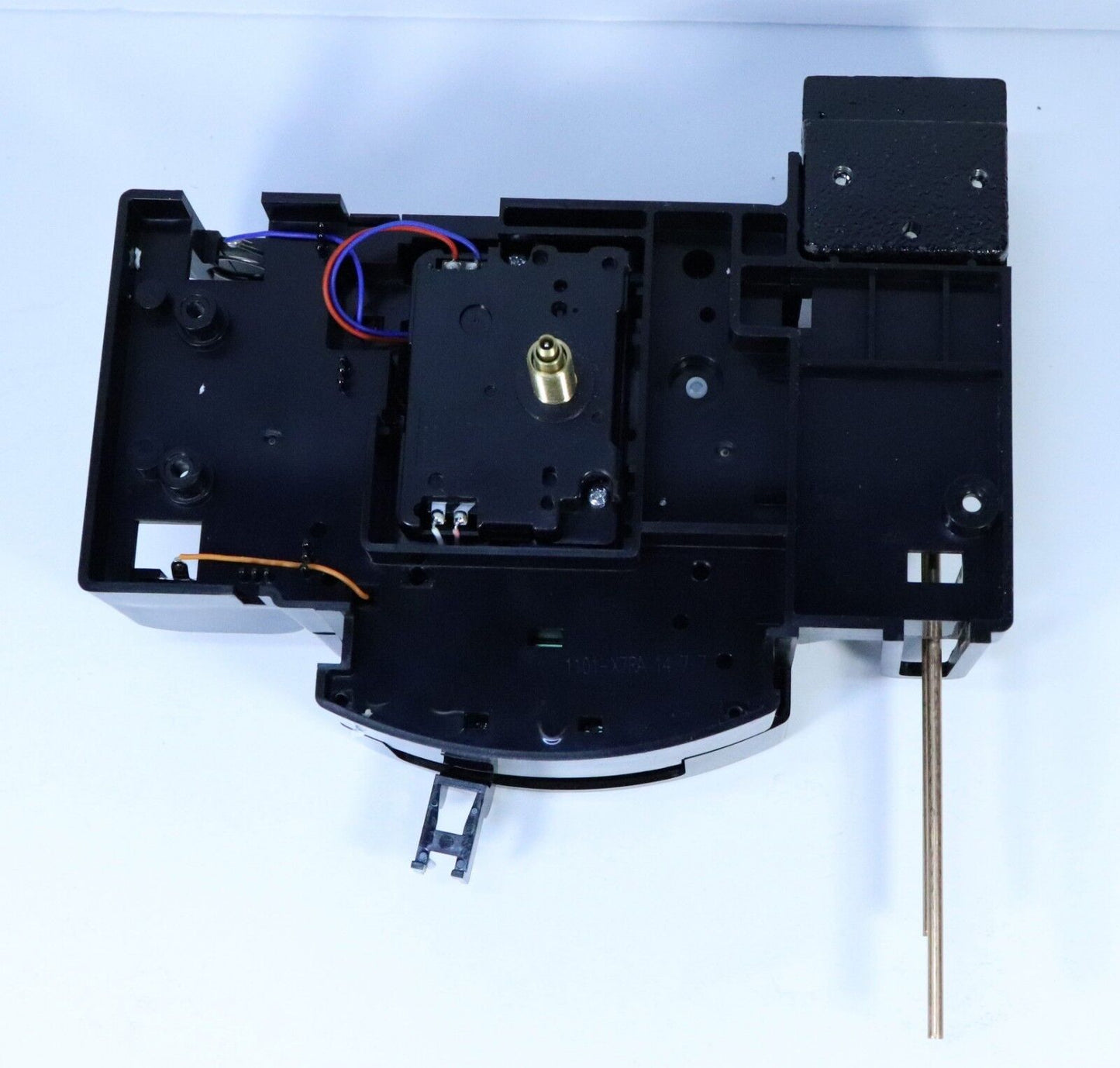

This Rhythm quartz pendulum clock movement delivers the classic mechanical bim-bam hour strike with the reliability and low maintenance of modern quartz technology. At the top of every hour, the movement strikes a two-note bim-bam using two tuned copper chime rods mounted in a solid cast iron block, producing a rich, traditional sound.

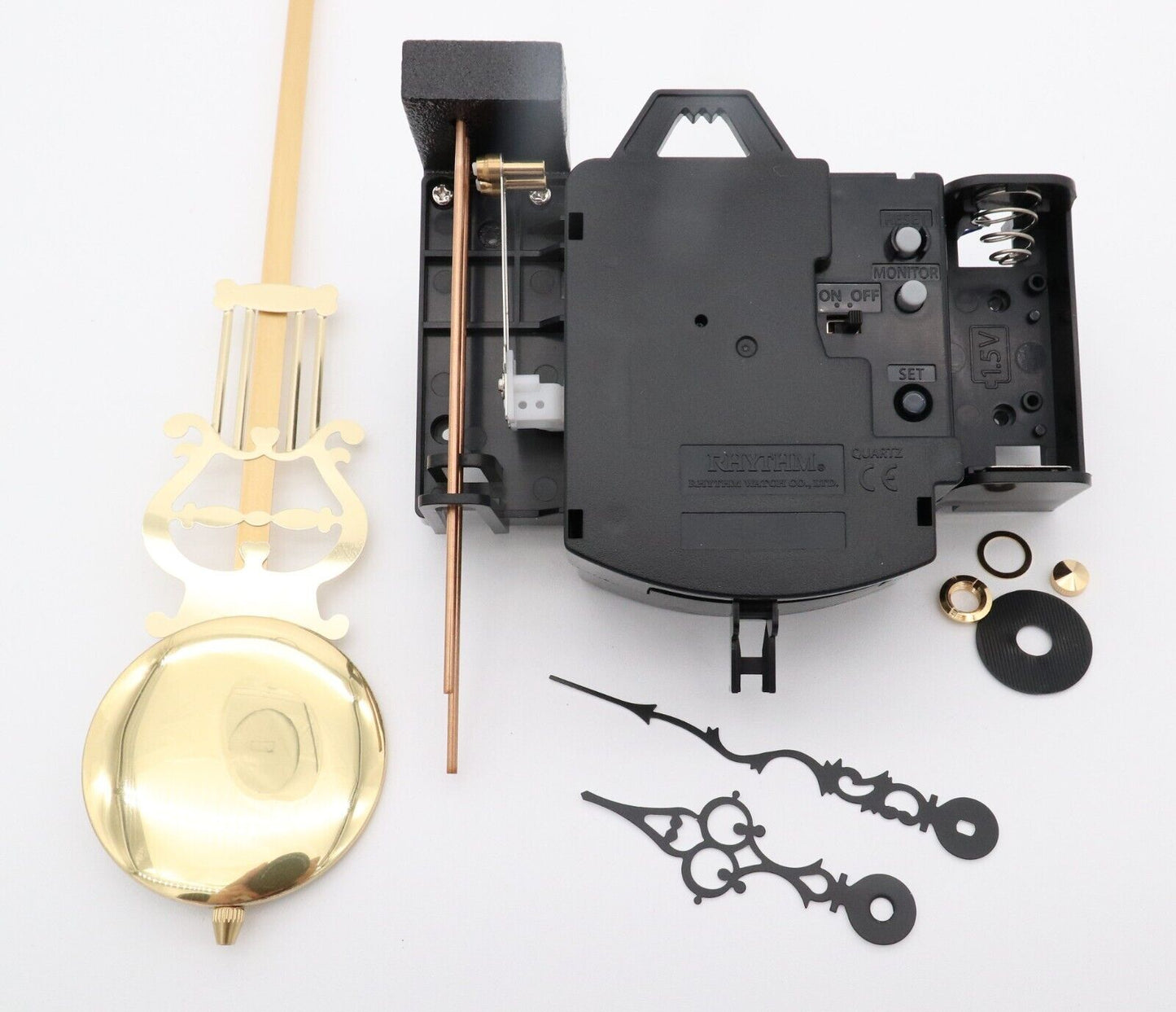

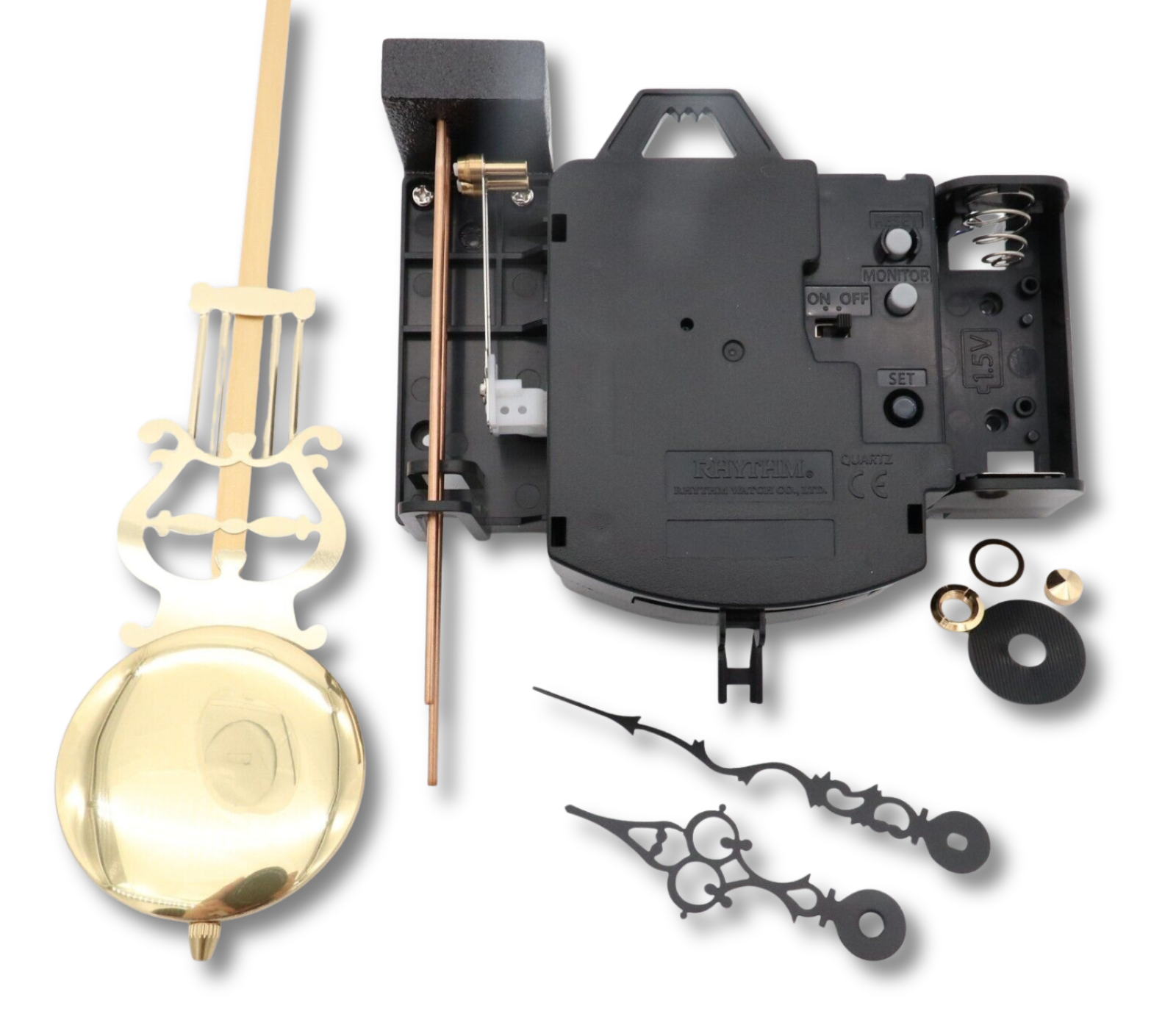

The movement can operate with or without a pendulum, includes a chime silencer, and is powered by a single D-cell battery (not included). It comes complete with mounting hardware, 4 1/8" black serpentine hands, and a full pendulum assembly, making it an excellent replacement or upgrade for pendulum clocks requiring an authentic strike sound without the upkeep of a mechanical movement.

Specifications:

Pendulum Compatibility

-Maximum Pendulum Length: 16"

-Included Pendulum:

-16" pendulum rod (breakaway in 1" increments down to approx. 5")

-Lyre attachment

-2 3/4" diameter pendulum bob

Dimensions

-Overall Size (with chime rods): 7 1/16" high × 6 1/2" wide × 1 3/4" deep

-Shaft Diameter: 5/16"

-Total Shaft Length: 7/8"

-Maximum Dial Thickness: 1/2"

Included Hands

-Style: Serpentine

-Color: Black

-Minute Hand Length: 4 1/8"

-Other hand sizes or styles available upon request

Movement Details

-Brand: Rhythm

-Type: Quartz pendulum clock movement with mechanical strike

-Strike: Bim-bam (two-note) hour strike

-Chime Rods: 2 tuned copper rods mounted in cast iron block

-Operation: With or without pendulum

-Chime Control: Built-in chime silencer

-Power: 1 × D-cell battery (not included)

-Warranty: 2-year manufacturer warranty

Included Components

-Clock movement

-Serpentine hands

-Full pendulum assembly

-Mounting hardware
