Seiko SKP Chime Mantel Clock Movement – Westminster / Whittington, Serpentine Hands

The Seiko SKP Quartz Chime Mantel Clock Movement is a high-quality, non-pendulum battery-powered movement designed for dependable performance and rich, traditional sound. It offers a choice of Westminster or Whittington chimes, with full 4/4 chiming every 15 minutes and an hour strike on the hour.

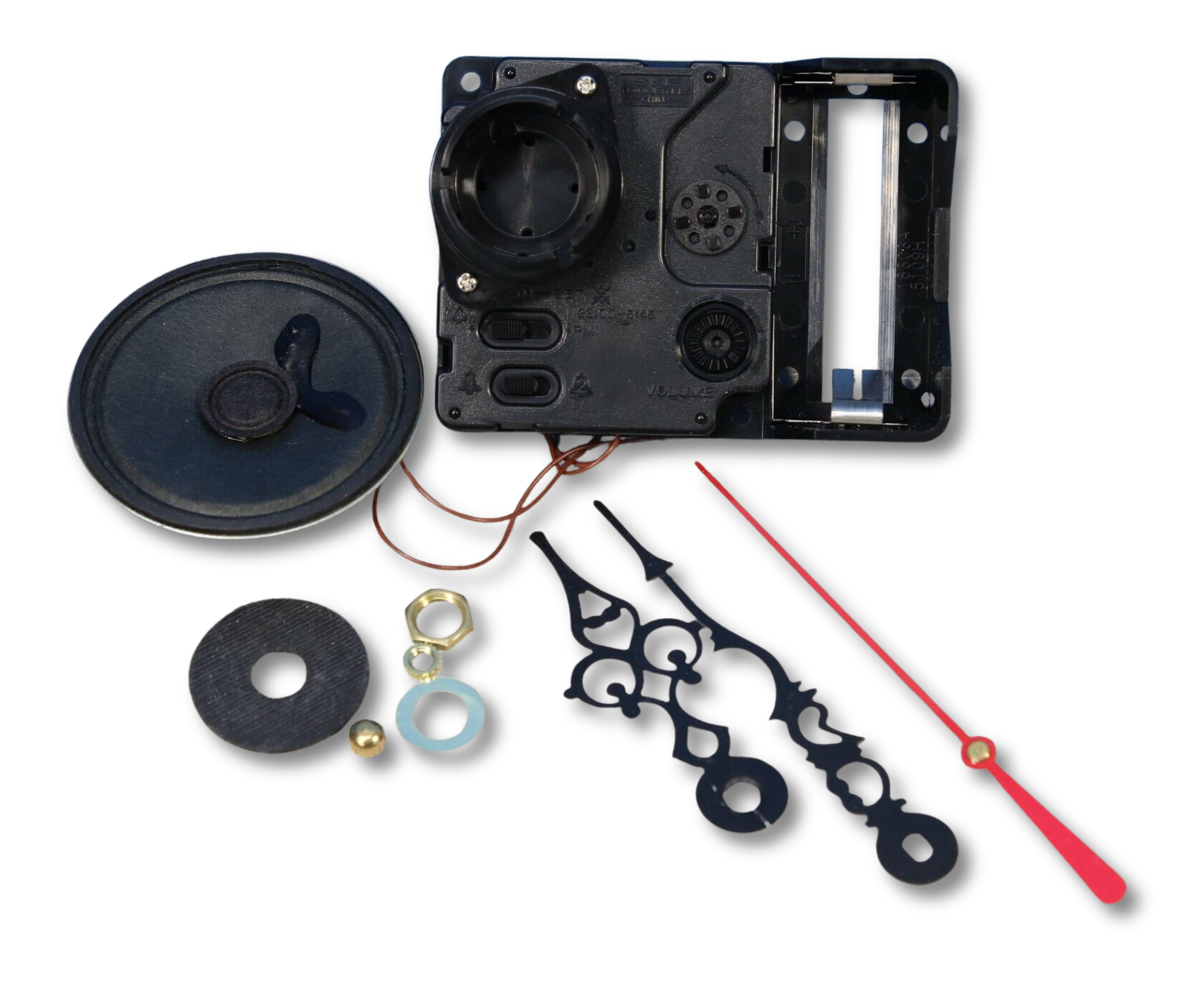

This movement includes a night shut-off feature and volume control, allowing you to customize operation for your space. It comes complete with mounting hardware, instructions, and serpentine-style hands. Additional hand styles (spade, sword, and Eli Terry) are available separately.

Powered by a single C-cell battery (not included), this Seiko SKP movement is a reliable choice for mantel clock repairs, restorations, or custom clock builds and is backed by a 1-year manufacturer’s warranty.

Specifications

-Brand: Seiko SKP

-Type: Quartz chime mantel clock movement

-Pendulum: Non-pendulum model

-Chime Options: Westminster or Whittington

-Chime Schedule: Full 4/4 chimes every 15 minutes + hour strike

-Sound Controls: Night shut-off and volume control

-Power Source: 1 × C-cell battery (not included)

-Warranty: 1-year manufacturer’s warranty

Included Hands

-Serpentine hands available in the following minute lengths:
• 1 3/8"
• 1 7/8"
• 2 3/8"
• 3"
• 4 1/4"
• 4 3/4"

(Hand length is measured from the center mounting hole to the tip. One hand set included per order.)

Movement Dimensions

-Size: 2 3/8" × 3 3/16" × 1 5/16"
(Dimensions shown without detachable speaker mount)

Shaft Options

-Short Shaft: Total shaft length: 5/8", Fits dials up to 3/8" thick

-Long Shaft: Total shaft length: 1 1/8", Fits dials up to 3/4" thick

Speaker

-Detachable speaker diameter: 2 1/4"
