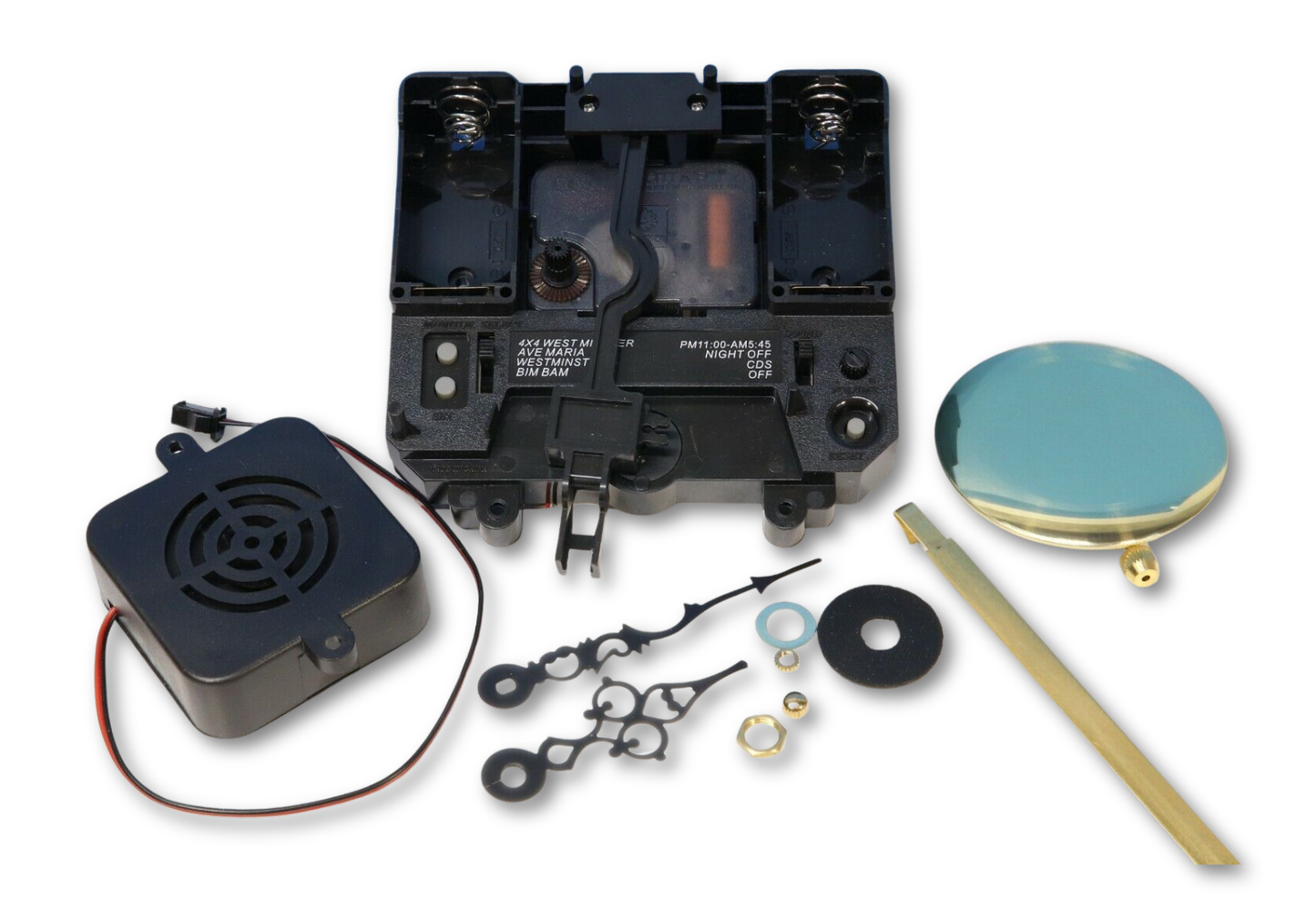

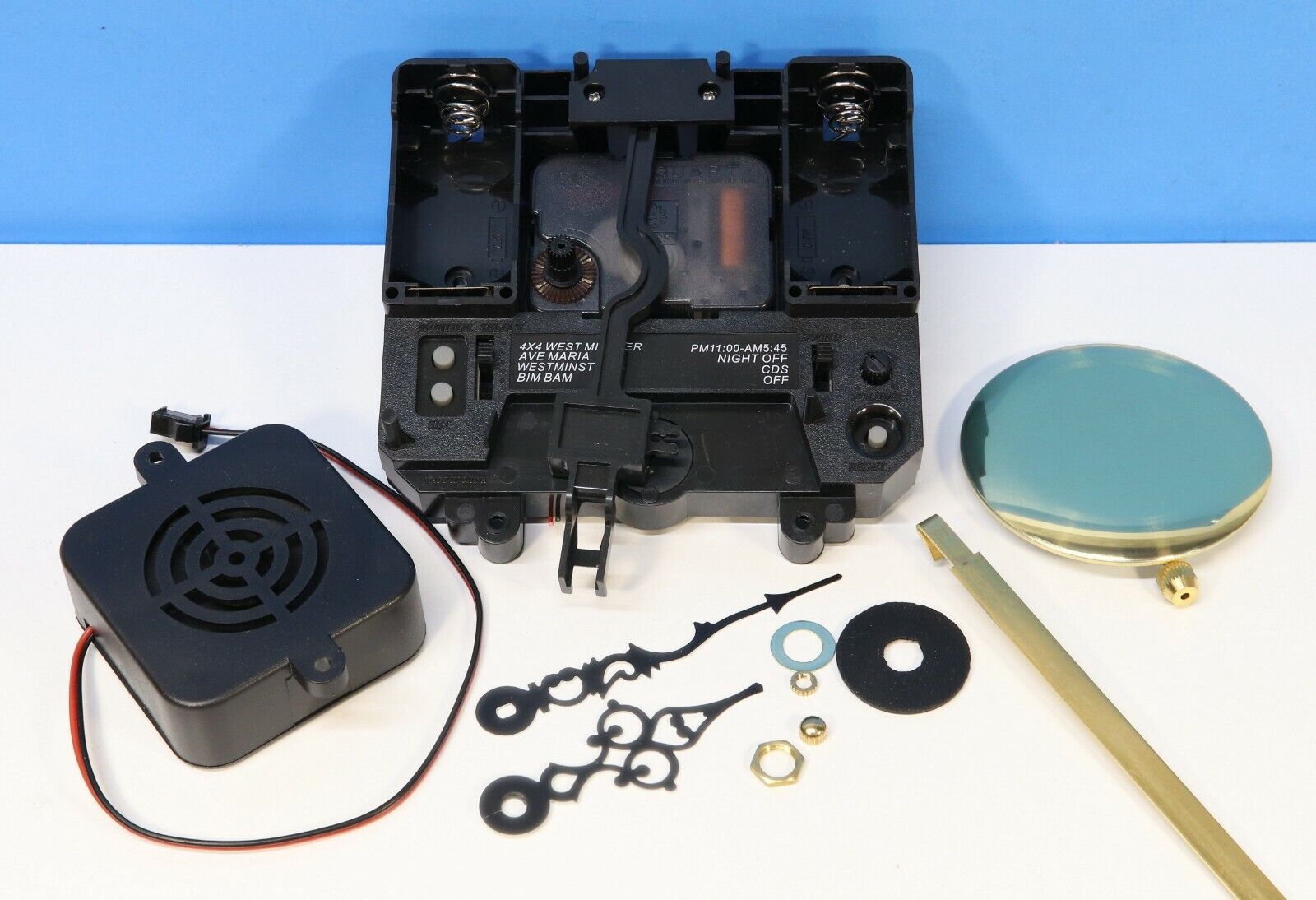

Triple Chime Quartz Clock Movement Kit with Pendulum – Tubular Bell Sound (Multiple Shaft Lengths)

Upgrade or build a clock with this Quartz Triple Chime Movement Kit with Pendulum and Tubular Bell sound. This battery-powered movement features four selectable melodies and an adjustable volume control for rich, clear digital chimes.

Melody Options:
• Full 4/4 Westminster chime
• Ave Maria
• Bim-Bam
• Westminster chime & hour strike only

Powered by 2 C-size alkaline batteries (not included), this kit includes a detachable 16" brass-color pendulum stick (break-off increments down to 4") and a 2 3/4" brass-color bob. Includes mounting hardware and instructions. This set includes serpentine-style hands.

A complete triple chime quartz movement kit with pendulum, ideal for new clock builds or replacing older chiming units with a rich tubular bell sound and modern reliability.

Specifications:

• Quartz battery-powered triple chime movement
• Tubular bell sound
• Adjustable volume
• Uses 2 × C batteries
• Housing size: 4 5/8" W × 4 7/8" H × 1 1/8" D (not including shaft)
• Speaker box: 2 3/8" × 2 3/8" × 15/16"
• 1-year factory warranty
• Uses “I” shaft hands
• Includes mounting hardware and instructions

Shaft Lengths:

• 11/16" — for dials up to 1/4" thick
• 13/16" — for dials up to 3/8" thick
• 1 1/16" — for dials up to 1/2" thick

Threaded shaft portion: 3/8" long × 5/16" diameter

Included Hands

Serpentine-style hands, in the following minute hand lengths:

• 1 3/8", 1 7/8", 2 3/8", 3 1/8", 4 1/4", 4 3/4"

Hands are black on one side and white on the other.

(Hand length is measured from the center mounting hole to the tip.)
