Triple Chime Quartz Mantel Clock Movement Tubular Bell Sound

Quartz battery powered chiming clock movement. This movement is used without a pendulum. Excellent tubular bell sound. Choice of 4 melodies: full 4/4 Westminster chime, Ave-Maria, Bim-Bam, and Westminster/hour strike on the hour only. Uses 2 "C" batteries, alkaline recommended. The housing of the movement measures 4 5/8" wide x 4 7/8" tall x 1 1/8" thick (not including the shaft). Adjustable volume control. Speaker box measures 2 3/8" x 2 3/8" x 15/16" thick (59.5 x 59.5 x 23.5 mm). Uses "I" shaft hands. Also includes mounting hardware and instructions. 1 year factory warranty.

Shaft length options:

3/4" overall shaft length for dials up to 1/4" thick

13/16" overall shaft length for dials up to 3/8" thick

1 1/16" overall shaft length for dials up to 1/2" thick

Maximum hand length is approximately 7".

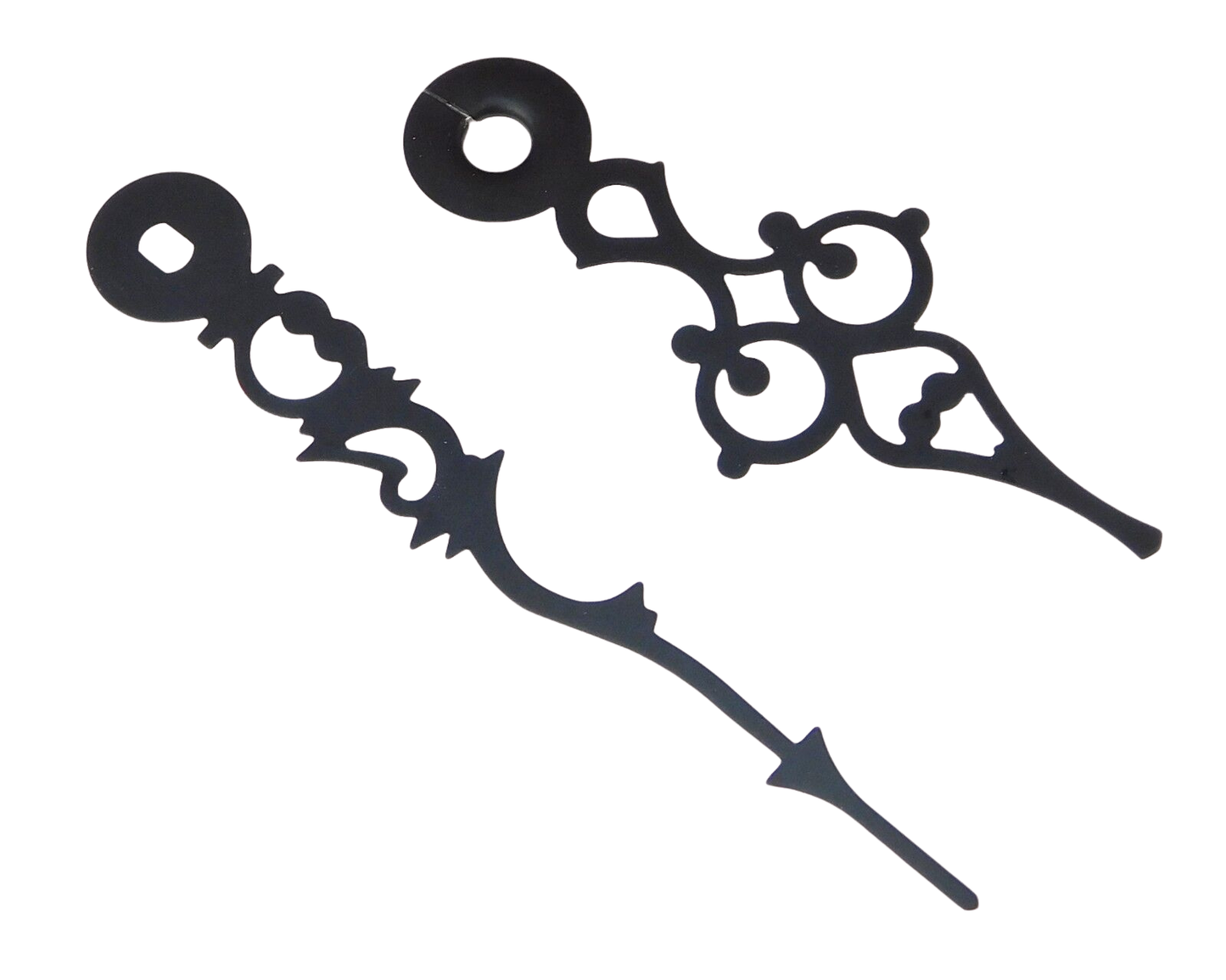

This kit comes with serpentine style hands, available in 1 3/8", 1 7/8", 2 3/8", 3 1/8", or 4 1/4" lengths. Hands are black on one side and white on the other. 1 set of hands per order. Hand length is determined by measuring the minute hand length from the center hole out to the tip of the hand, or from the center hole out on your dial.
