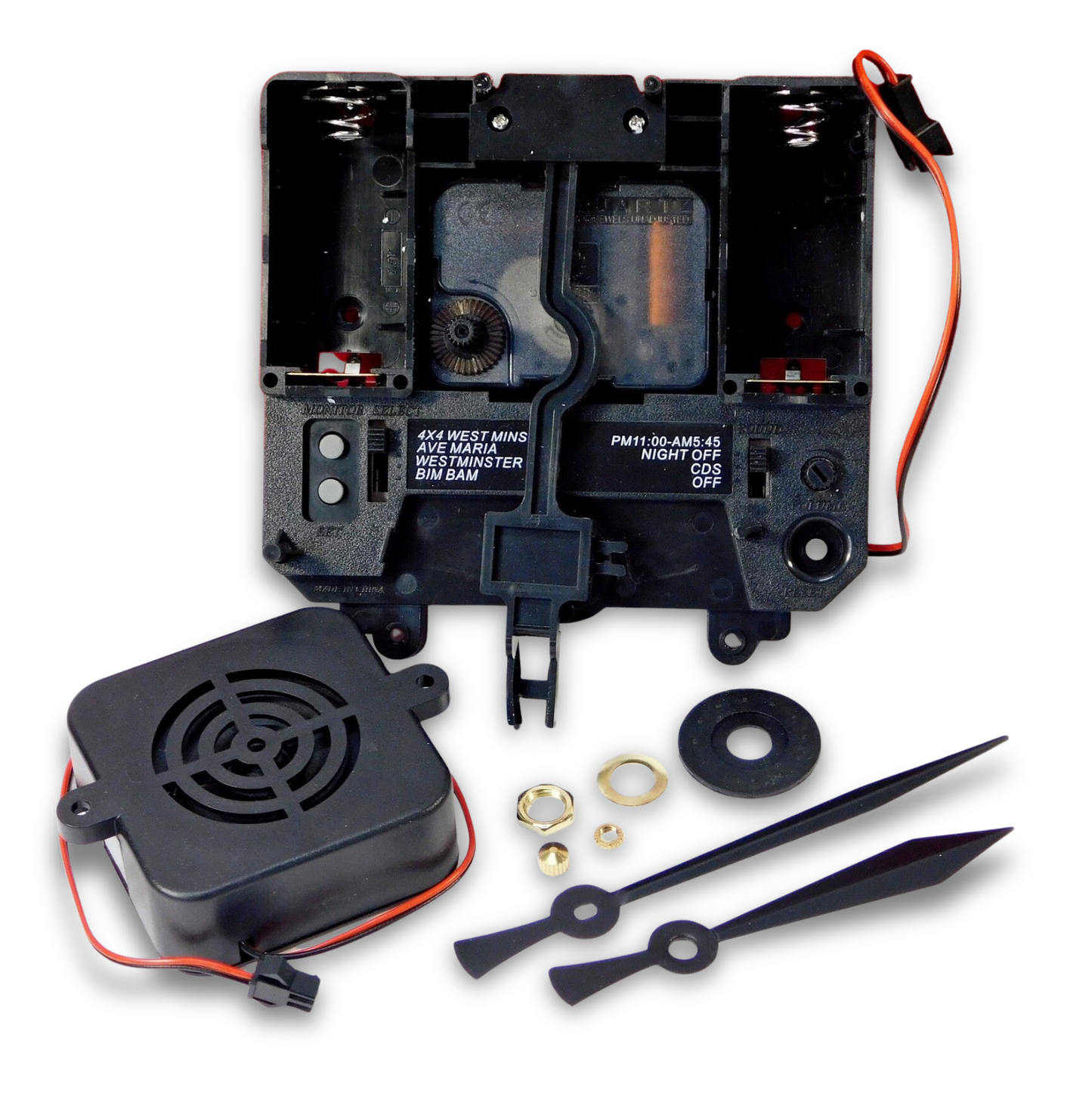

Triple Chime Quartz Pendulum Clock Movement Tubular Bell Sound - Sword Hands
Triple Chime Quartz Pendulum Clock Movement Tubular Bell Sound - Sword Hands
Krieger Clock Parts

Triple Chime Quartz Pendulum Clock Movement Tubular Bell Sound - Sword Hands

Regular price $54.95 $0.00 Unit price per

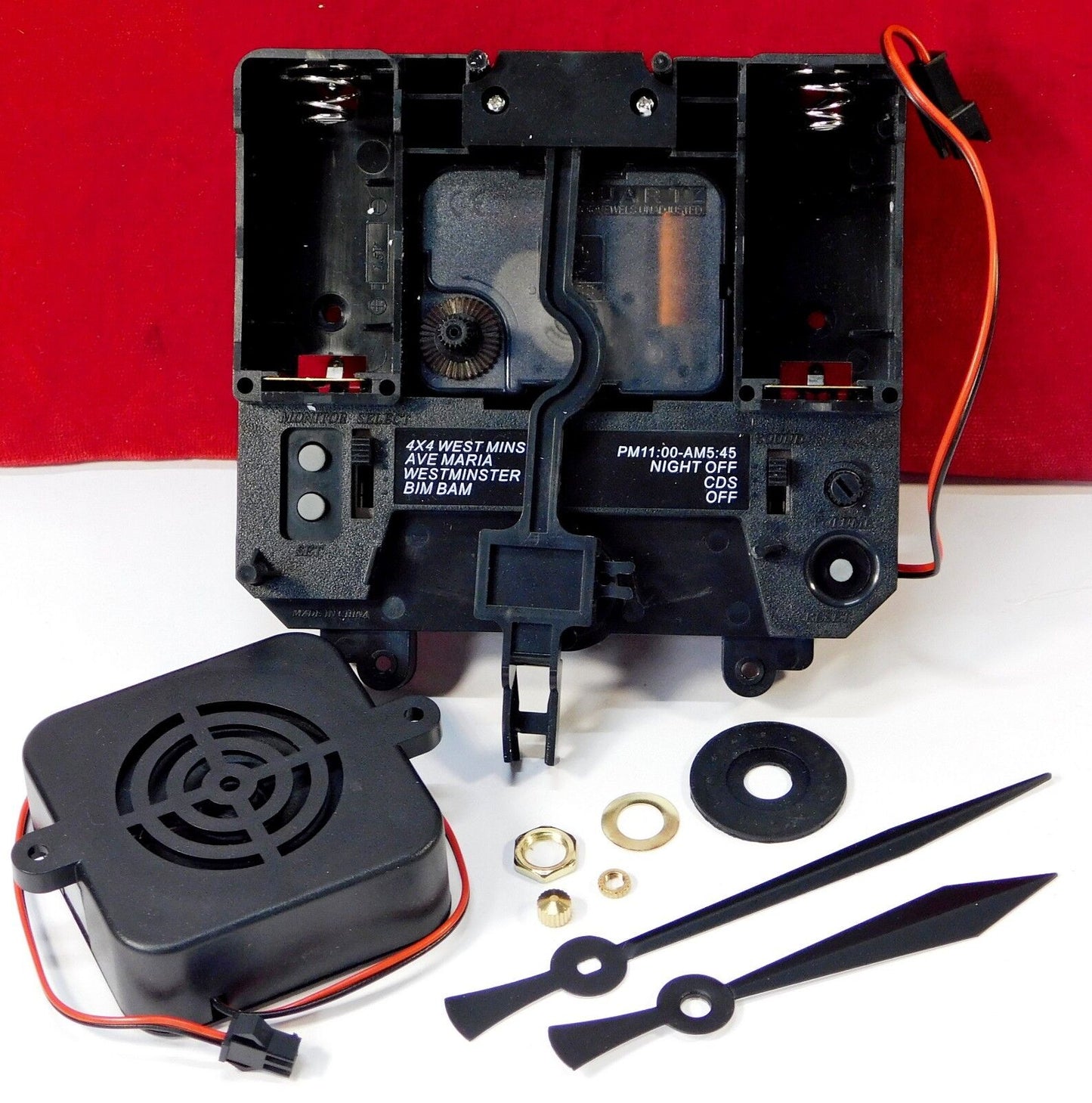

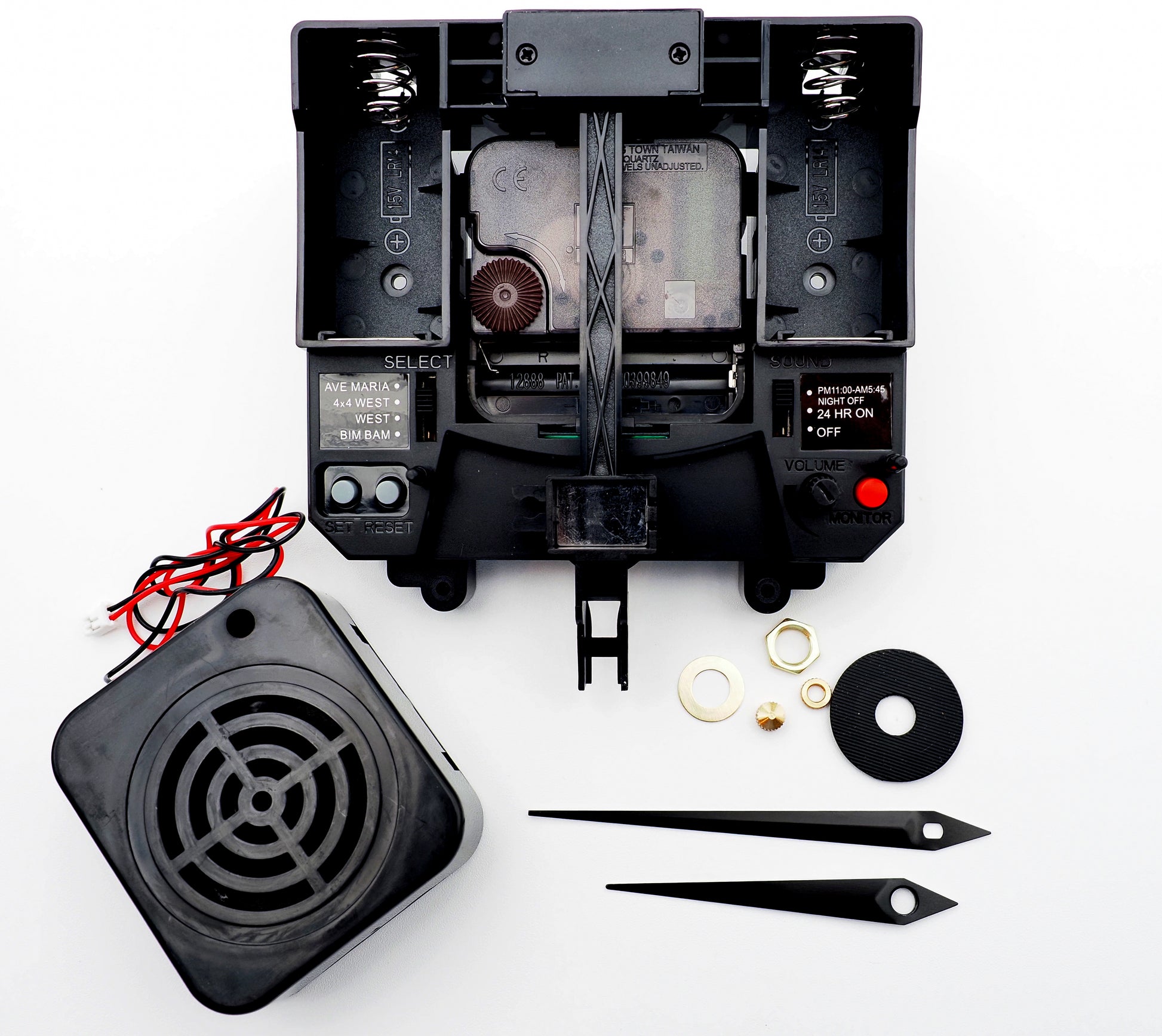

Quartz, battery-powered, chiming clock movement. This movement can be used with or without a pendulum (pendulum not included). Excellent tubular bell sound. Choice of 4 melodies: full 4/4 Westminster chime, Ave-Maria, Bim-Bam, and Westminster/hour strike on the hour only. Uses 2 "C" batteries, alkaline recommended. The housing of the movement measures 4 5/8" wide x 4 7/8" tall x 1 1/8" thick (not including the shaft). Adjustable volume control. Speaker box measures 2 3/8" x 2 3/8" x 15/16" thick (59.5 x 59.5 x 23.5 mm). Uses "I" shaft hands. Also includes mounting hardware and instructions. 1-year factory warranty.

This movement will drive a pendulum up to 17" long and / or weighing up to 3 ounces. Maximum hand length is approximately 7".

Available shaft lengths:

3/4" for dials up to 1/4" thick

13/16" for dials up to 3/8" thick

1 1/16" for dials up to 1/2" thick

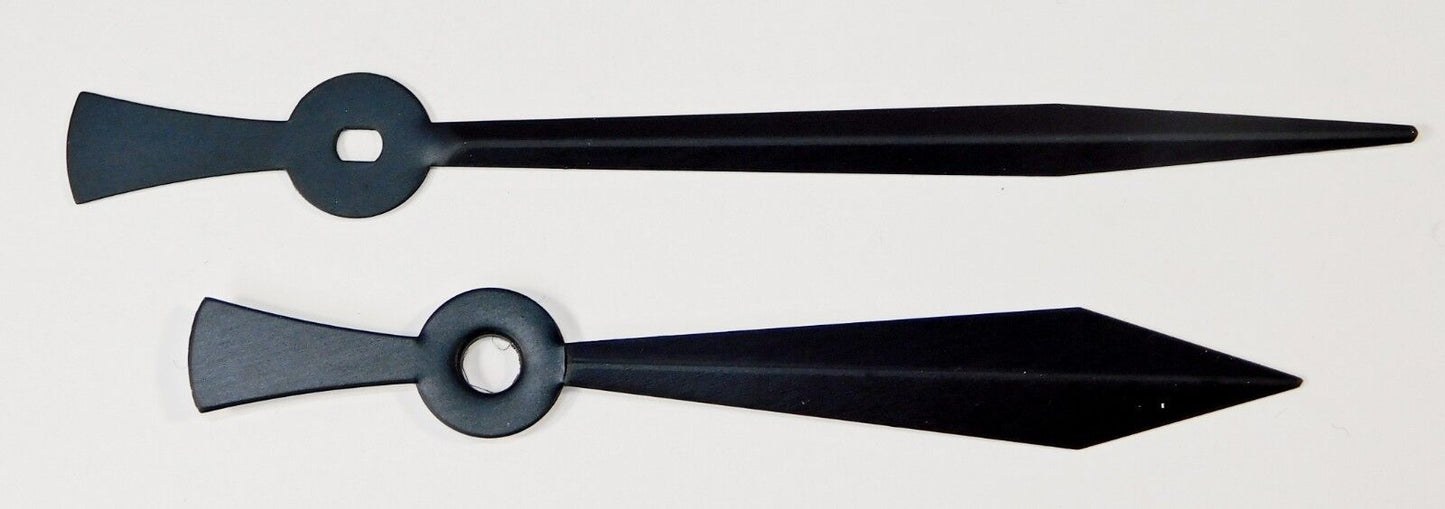

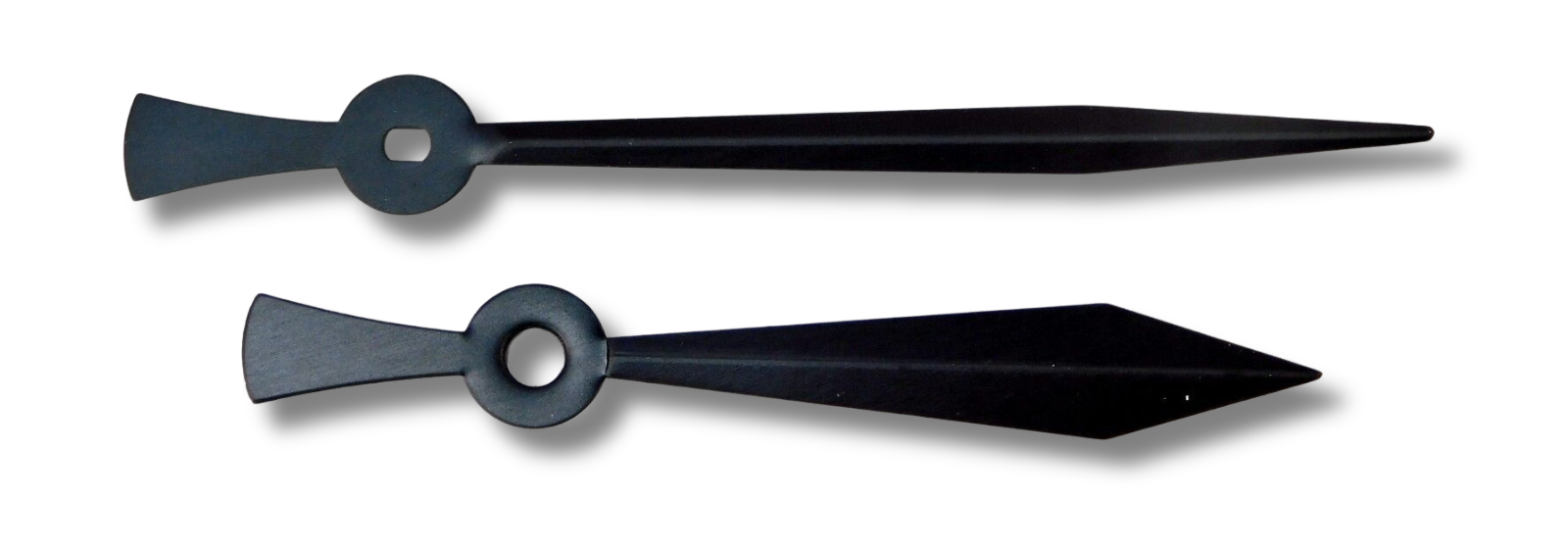

This kit comes with sword-style hands. This style is available in a length of 3 5/8". Hands are black color on one side and white on the other. 1 set of hands per order. Hand length is determined by measuring the minute hand length from the center hole out to the tip of the hand, or from the center hole out on your dial.
