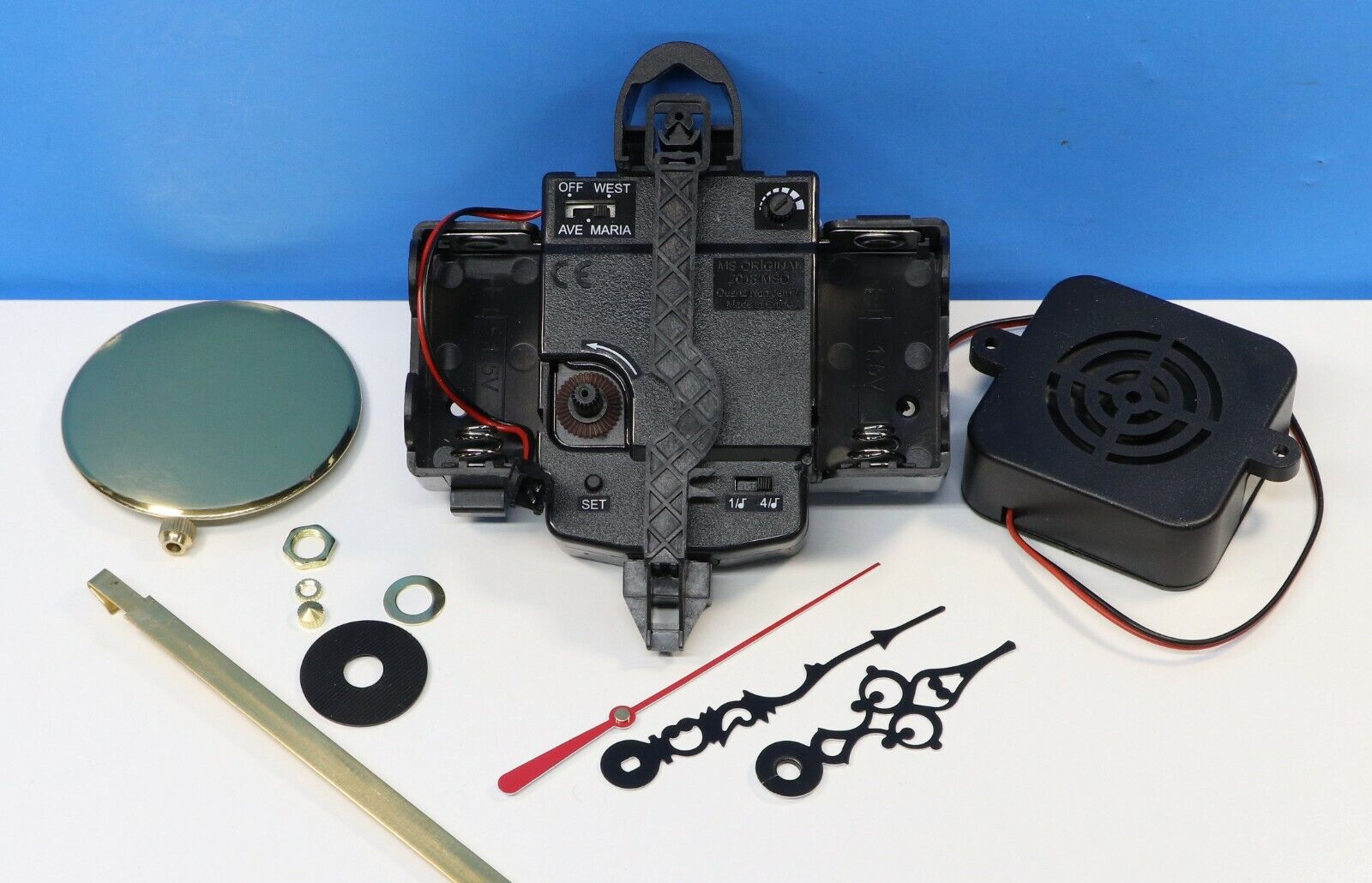

Westminster / Ave Maria Quartz Chime Clock Movement with Pendulum – Tubular Bell Sound

Movement measures 4 5/8" wide x 4 3/8" overall height (the bottom of the pendulum hanger extends an additional 13/16" below the movement). Overall thickness is 1 5/16" not including the shaft.

Shaft diameter is 5/16".

Speaker measures 2 3/8" x 2 3/8" x 7/8" thick.

Movement is supplied with black, serpentine-style hands available in the following lengths: 1 3/8", 1 7/8", 2 3/8", 3", 4 1/4", and 4 3/4". Hand length is determined by measuring the minute hand from the center hole out to the tip. One set of hands per order.

2-year factory warranty

-

This Westminster / Ave Maria quartz chime clock movement kit is a high-quality, battery-powered chiming movement with a rich tubular bell sound and a pendulum drive. Manufactured by MS, this movement offers reliable quartz accuracy combined with traditional chiming melodies.

The movement can be set to full 4/4 chiming (plays every 15 minutes and counts the hour), or hour-only mode, playing the melody and counting the hour without quarter-hour chimes

It includes a night shut-off feature, volume control, mounting hardware, instructions, and a 16" adjustable metal pendulum rod with a 2 3/4" brass-finish pendulum bob. The pendulum rod can be shortened in 1-inch increments down to approximately 4 inches, making it adaptable to many clock cases.

This is a long-shaft model, suitable for clocks with thicker dials up to 5/16" thick.

Included Hands

Style: Serpentine

-Color: Black

-Available Minute Hand Lengths:

-1 3/8"

-1 7/8"

-2 3/8"

-3"

-4 1/4"

-4 3/4"

(Hand length is measured from the center mounting hole to the tip of the minute hand. One set of hands included per order.)

Specifications

-Movement Type: Quartz chiming clock movement with pendulum

-Chimes: Westminster & Ave Maria

-Chime Options:

-Full 4/4 quarter-hour chime + hour count

-Hour-only mode (no quarter-hour chime)

-Sound: Tubular bell

-Night Shut-Off: Yes

-Volume Control: Yes

-Battery: Required (battery type not specified by manufacturer)

-Warranty: 2-year factory warranty

Movement Dimensions

-Width: 4 5/8"

-Overall Height: 4 3/8"

-Pendulum hanger extends an additional 13/16" below movement

-Overall Thickness: 1 5/16" (not including shaft)

-Shaft Diameter: 5/16"

Shaft Information

-Total Shaft Length: 11/16"

-Maximum Dial Thickness: Up to 5/16"

Speaker Dimensions

-Speaker Size: 2 3/8" × 2 3/8" × 7/8" thick

Pendulum Details

-Pendulum Rod:

-Metal, 16" long

-Adjustable in 1" increments down to ~4"

Pendulum Bob:

-2 3/4" diameter

-Brass finish
